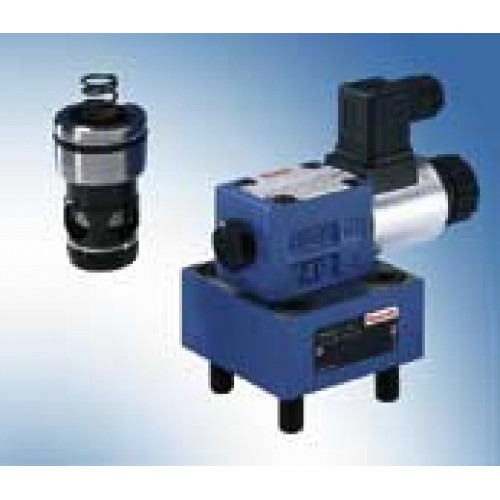

Bosch Standard Valves Directional Control Hydraulic Valves Model LC..A, LC..B (cartridge) and LFA (control cover) Logic Control Valves

Hydraulics Application: 2-way cartridge valves with directional function

Key features:

• Sizes 16 to 160
• Standardized installation to DIN ISO 7368 (up to size 100)
• Standard area ratios 2:1 and 14.3:1
• “High flow” by default
• Valve poppet with and without damping nose
• Various opening pressures
• Various stroke limitation adjustment types
• Control cover, optionally with:
  • integrated poppet/shuttle valve
  • built-on possibility for directional poppet/spool valve or combination
  • end switch monitoring
• Variable nozzle fittings
• Optional shaft sealing
• Mounting screws included in the scope of delivery of the cover
• High pressure versions on inquiry
• Special media (e.g. emulsion, water) on inquiry

Features
C  Valve poppet with or without damping nos
C 2 area ratio
C 4 different spring
C  4 stroke limiter
C  Control cover with integrated poppet valv
C  Control cover with integrated shuttle valv
C Control cover for mounting directional spool valves with or with
out integrated shuttle valve
C Control cover with or without limit switch monitorin
C Further information
Pilot control valvesSize 6Size 10
Directional spool valve type WERE 23178RE 23327
Directional poppet valve type SEWRE 22058RE 22075
Directional poppet valve type SEDRE 22049RE 22045

Ordering code: Cartridge valve (without control cover)

Standard types
Type LC (cartridge valve)Material number
Type LC (cartridge valve)Material number
LC 16 A20D7X/
LC 40 A20D7X/
R900912572
R900937999
LC 16 A20E7X/
LC 40 A20E7X/
R900910269
R900938000
LC 16 A40D7X/
LC 40 A40D7X/
R900912573
R900935732
LC 16 A40E7X/
LC 40 A40E7X/
R900912568
R900927973
LC 16 B20E7X/
LC 40 B20E7X/
R900912595
R900938007
LC 25 A20D7X/
LC 50 A20D7X/
R900912580
R900938026
LC 25 A20E7X/
LC 50 A20E7X/
R900910270
R900920273
LC 25 A40D7X/
LC 50 A40D7X/
R900912581
R900938027
LC 25 A40E7X/
LC 50 A40E7X/
R900912574
R900929935
LC 25 B20E7X/
LC 50 B20E7X/
R900912604
R900929665
LC 25 B40D7X/
LC 63 A20D7X/
R900912609
R900938058
LC 25 B40E7X/
LC 63 A20E7X/
R900912601
R900928826
LC 32 A20D7X/
LC 63 A40D7X/
R900912589
R900938059
LC 32 A20E7X/
LC 63 A40E7X/
R900906337
R900933230
LC 32 A40D7X/
LC 63 B20E7X/
R900909665
R900938064
LC 32 A40E7X/
R900909662
LC 32 B20E7X/
R900912613
LC 32 B40D7X/
R900912617
LC 32 B40E7X/
R900912610

Standard types
Type LFA (control cover)Material number
Type LFA (control cover)Material number
LFA 40 D-7X/F
LFA 16 D-7X/F
R900938073
R900912625
LFA 40 H2-7X/F
LFA 16 H2-7X/F
R900938122
R900912655
LFA 40 WEA-7X/
LFA 16 WEA-7X/
R900931581
R900910271
LFA 40 GWA-7X/
LFA 16 GWA-7X/
R900938114
R900912636
LFA 40 E-7X/CA40DQMG24F
LFA 16 E-7X/CA40DQMG24F
R900938107
R900912619
LFA 50 D-7X/F
LFA 25 D-7X/F
R900938150
R900905302
LFA 50 H2-7X/F
LFA 25 H2-7X/F
R900938205
R900912694
LFA 50 WEA-7X/
LFA 25 WEA-7X/
R900938215
R900910273
LFA 50 GWA-7X/
LFA 25 GWA-7X/
R900938200
R900912675
LFA 50 E-7X/CA40DQMG24F
LFA 25 E-7X/CA40DQMG24F
R900938197
R900912670
LFA 63 D-7X/F
LFA 32 D-7X/F
R900938225
R900905303
LFA 63 H2-7X/F
LFA 32 H2-7X/F
R900938250
R900912728
LFA 63 WEA-7X/
LFA 32 WEA-7X/
R900938257
R900912712
LFA 63 GWA-7X/
LFA 32 GWA-7X/
R900938245
R900912708
LFA 63 E-7X/CA40DQMG24F
LFA 32 E-7X/CA40DQMG24F
R900938242
R900912703
