Buschjost Valves and systems for cleaning dust collectors Norgren Microcontroller-operated valve controller Series 83490

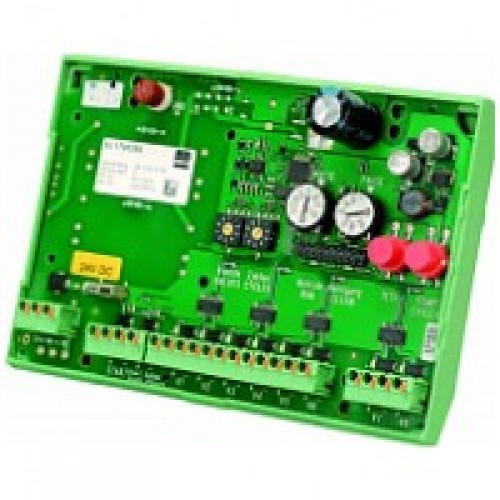

Microcontroller-operated valve controller
Description (standard valve)
The microcontroller-operated valve controller is used for the cycle control of electromagnetic valves
in industrial dust filter systems. The flexible design concept enables the use as PCB version with
spacer sleeves, as standard rail version or as separate control unit in plastic casing with ATEX for
use in Zone 22 approval. To adapt the controller to various valve outputs, it can be equipped with the
corresponding transformer.
Technical Data
Power supply:   230 V AC, 50 - 60 Hz or 24 V DC
Current consumption:   30 VA
Operating temperature:  0 !aC ... +50 !
Valve outputs:  8
Displays:
  LED  1 x green "Operation"
1 x yellow "Cleaning"
8 x red assigned to the valves
Control elements:
  Start button  Set cycles are executed
  Test button  The next valve is cleaned
  Rotary selector
  switch   Number of valves from 1...8 Cycle setting
  Potentiometer  Pulse setting, Pause setting
Electrical connection:   Cage clamp terminal strips
Valve current:   1 A at a pulse time !Y 1 s and a pause
!Y the pulse time, output short-circuit-proo
Versions:  PCB with collar sleeves for assembly with M4 screws
Installation on standard rail support
Dust-proof plastic casing with transparent cover
Approval:   * Ex tD A22 IP65 T60!a
x II 3D Ex tb IIIB T60!aC DC (only casing version
Ordering Data
Part-Number   Part Number   Description
Input voltage in 24 V 1 Input voltage in 230 V 2
8349020.0000.02400 8349020.0000.23059 PCB Version
8349010.0000.02400 8349010.0000.23059 Standard rail support
8349000.0000.02400 * 8349000.0000.23059 * Casing version *
Accessories
Part-Number Description
Connection set with 1 cable gland M25, 2 M32 incl.
1700933.0000.00000
multiple sealing inserts and sealing bolts
