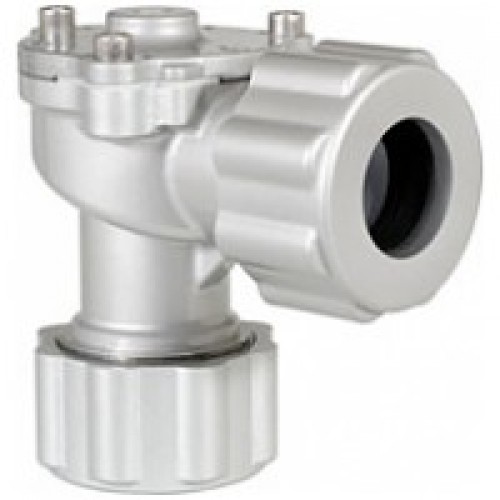

Buschjost Valves and systems for cleaning dust collectors Norgren Series 83640

2/2-way valves DN 25 to DN 40
For air
Remote pilot operated
Compression Fittings DN 25 and DN 40
Operating pressure 0.4 to 8 bar
Description (standard valve)
Control via separate pilot valve or pilot controller
Switching function:  normally closed
Flow direction:  determined
Coil gas temperature:  ¨C40 !aC to max. +85
Ambient temperature:  ¨C20 !aC to max. +85
Mounting position:  optional
Pilot connection:  G 1/8
Material
Body:  Aluminium
Seat seal:  TPE
Features High flow rateClear compact designOne-piece diaphragmSimple mounting

Characteristic data
Valves
Part Number  Nominal diameter  Operating pressure  k -value * Weight
v
3
(mm) min. (bar)                           max. (bar) (Base m /h) (kg)
8364400.0000 25 0.4 8 22 0.7
8364600.0000 40 0.4 8 59 1.85
* Cv-value (US) v kv-value x 1.2
State voltage [V] and frequency [Hz]

Part Number  Connection  T T1 B H H1 L L1
size (mm) (mm) (mm) (mm) (mm) (mm) (mm)
8364400.0000 34.8 ca. 45 10 80 ca. 122 38 ca. 132 ca. 87
8364600.0000 50 ca. 66 10 124.5 ca. 197 90 ca. 183 ca. 118
