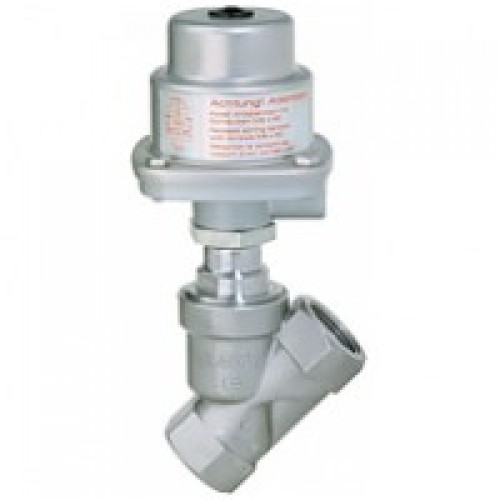

Buschjost Pressure actuated valves by external fluid Norgren solenoid valve Series 82380 82340 82390 82490

2/2-way valves DN 15 !- 5
For aggressive gases and liquids
Pressure actuated by external fluid
Seat valves
82380
Internal thread G 1/2 !- G 2 or 1/2 NPT !- 2 N
Operation pressure 0 !- 16 bar (see table
82340
82390
82490
Description (standard valve)
Switching function:   normally closed
Flow direction:  determined
Mounting position:  as required
Process fluid characteristics / Valve material
Fluid temperature:  ¨C10 !aC ... +180
Ambient temperature:  ¨C10 !aC ... + 60
Material body:  Stainless steel (1.4408)
Seat seal:  PTFE
Internal parts:  Stainless steel
Spindle sealing:  PTFE / FPM; self-adjustable
Pilot fluid characteristics / Actuator material
Pilot connection:  G 1/4 resp. 1/4 NPT
Pilot fluid:  neutral gases
Pilot pressure:  3.5 !- 8 ba
Fluid temperature:  max. +60 !a
Actuator:   Body:  Stainless steel, Aluminium
  Bottom:  WEMA¨CKor coate
Seat seals:  NBR
Internal parts:  Coated steel
FeaturesSuitable for contaminated process fluidsHigh flow rateHigh media compatability due to optimal material combinationsFor robust industry applicationsDamped closing (valve closes against flow direction)Suitable for vacuum up to max. 90 %

Part Number Nominal Diame- Connection  A b B C H L T
ter (mm) Size (mm) (mm) (mm) (mm) (mm) (mm)
Actuator  ? 70 mm
8238200.0000 G 1/2
15 175 SW 27   89.5 159 154 65 15.0
8239200.0000 1/2 NPT
8238300.0000 G 3/4
20 182 SW 32   89.5 165 160 75 16.5
8239300.0000 3/4 NPT
8238400.0000 G 1
25 190 SW 41   89.5 175 171 90 19.0
8239400.0000 1 NPT
8238500.0000 G 1 1/4
32 205 SW 50   89.5 189 186 110 21.5
8239500.0000 1 1/4 NPT
8238600.0000 G 1 1/2
40 207 SW 55   89.5 193 190 120 21.5
8239600.0000 1 1/2 NPT
8238700.0000 G 2
50 219 SW 70   89.5 211 206 150 26.0
8239700.0000 2 NPT
Actuator ? 125 mm
8248500.0000 G 1 1/4
32 270 SW 50 163.0 253 250 110 21.5
8249500.0000 1 1/4 NPT
8248600.0000 G 1 1/2
40 272 SW 55 163.0 257 255 120 21.5
8249600.0000 1 1/2 NPT
8248700.0000 G 2
50 284 SW 70 163.0 275 270 150 26.0
8249700.0000 2 NPT
