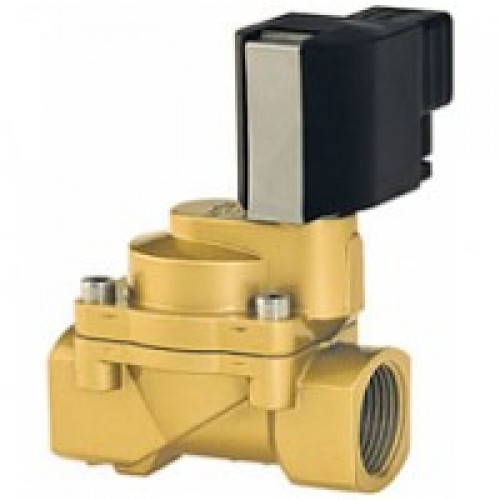

Buschjost solenoid valve with differential pressure Norgren solenoid valve Series 85380 85390

2/2-way valves DN 8 to DN 25
For neutral steam and liquids
Indirectly solenoid actuated
Piston valves
Internal threads G 1/4 !- G 1 or 1/4 NPT !- 1 NP
Operating pressure 1 !- 25 ba
Description (standard valve)
Solenoid valve for steam, hot water and other neutral fluids
Switching function:  normally closed
Flow direction:  determined
Differential pressure:   1 bar required
Fluid temperature:  0 !aC* up to max. +200 !
Ambient temperature:  0 !aC* up to max. +50 !aC
with solenoid mounted vertical
  underneath max. +60 !aC*
* temperature <0?!aC on reques
** max. +55?!aC within the scope of cCSAu
Mounting position:  optional, preferably solenoid
vertical on top
Material
Body:  Brass (CW617N)
Seat seal:  PTFE
Internal parts:  Stainless steel, FPM, PTFE
For contaminated fluids insertion of a strainer is recommended.
FeaturesCompact build piston valveFunctional designHigh flow ratePiston guided in PTFE ringsLong lifetimeSolenoid interchangeable without tools (c)Leakrate E acc. to DIN EN 12266-1

Characteristic Data
Valves
Operating Pressure *
Part Number Nominal Diameter Connection Size k -value ** Weight Total
v
(mm) (Base m3/h) (kg)
min. (bar) max. (bar)
8538000.9152 G 1/4
  8 1 25 2.2 0.83
8539000.9152 1/4 NPT
8538100.9152 G 3/8
10 1 25 3.4 0.82
8539100.9152 3/8 NPT
8538200.9152 G 1/2
12 1 25 4.4 0.85
8539200.9152 1/2 NPT
8538300.9152 G 3/4
20 1 25 7.0 1.25
8539300.9152 3/4 NPT
8538400.9152 G 1
25 1 25 10.5 1.70
8539400.9152 1 NPT
*  for gases and liquid fluids up to 40 mm2/s (cSt) State voltage [V] and frequency [Hz]
**  C -value (US) !O  -value x 1.2
v v
Solenoid 9152 Further Options (Valves)
Standard voltage XXXXX01.XXXX  Normally open, Operating pressure 1 up to 16 bar
XXXXX02.XXXX  Manual override
DC  1 AC 2 AC 2
50 Hz 60 Hz
On request  Further versions
24 V 24 V  ¨
¨ 110 V 120 V
Further Options (Solenoids)
On request  Further versions
¨ 230 V 220 V
Design acc. to DIN VDE 0580
Voltage range  !à10
100 % duty cycle
Protection class acc. to EN 60529 IP65
Socket Form A acc. to DIN EN 175301-803
(included)
Power Consumption
According to DIN VDE 0580 at a solenoid tem-
perature of +20!aC. At operating state temper-
ture the input power of a coil decreases by up
to ca. 30% due to physical reasons.
Solenoid DC 1 AC 2
Inrush Holding
9152 * 10 W 45 VA 10 W

Characteristic Data
Valves
Operating Pressure *
Part Number Nominal Diameter Connection Size k -value ** Weight Total
v
(mm) (Base m3/h) (kg)
min. (bar) max. (bar)
8538000.9152 G 1/4
  8 1 25 2.2 0.83
8539000.9152 1/4 NPT
8538100.9152 G 3/8
10 1 25 3.4 0.82
8539100.9152 3/8 NPT
8538200.9152 G 1/2
12 1 25 4.4 0.85
8539200.9152 1/2 NPT
8538300.9152 G 3/4
20 1 25 7.0 1.25
8539300.9152 3/4 NPT
8538400.9152 G 1
25 1 25 10.5 1.70
8539400.9152 1 NPT
*  for gases and liquid fluids up to 40 mm2/s (cSt) State voltage [V] and frequency [Hz]
**  C -value (US) !O  -value x 1.2
v v
Solenoid 9152 Further Options (Valves)
Standard voltage XXXXX01.XXXX  Normally open, Operating pressure 1 up to 16 bar
XXXXX02.XXXX  Manual override
DC  1 AC 2 AC 2
50 Hz 60 Hz
On request  Further versions
24 V 24 V  ¨
¨ 110 V 120 V
Further Options (Solenoids)
On request  Further versions
¨ 230 V 220 V
Design acc. to DIN VDE 0580
Voltage range  !à10
100 % duty cycle
Protection class acc. to EN 60529 IP65
Socket Form A acc. to DIN EN 175301-803
(included)
Power Consumption
According to DIN VDE 0580 at a solenoid tem-
perature of +20!aC. At operating state temper-
ture the input power of a coil decreases by up
to ca. 30% due to physical reasons.
Solenoid DC 1 AC 2
Inrush Holding
9152 * 10 W 45 VA 10 W

Part Number ND   Connection  ? A H H 1 L L 1 T
(mm) Size (mm) (mm) (mm) (mm) (mm) (mm)
8538000.9152 G 1/4
  8 44 105.0 93.5 60 27.5 12
8539000.9152 1/4 NPT
8538100.9152
G 3/8
10 44 105.0 93.5 60 27.5 12
8539100.9152 3/8 NPT
8538200.9152 G 1/2
12 44 107.5 93.5 67 31.0 14
8539200.9152 1/2 NPT
8538300.9152 G 3/4
20 50 119.0 102.5 80 36.5 16
8539300.9152 3/4 NPT
8538400.9152 G 1
25 62 131.5 110.5 95 44.0 18
8539400.9152 1 NPT
