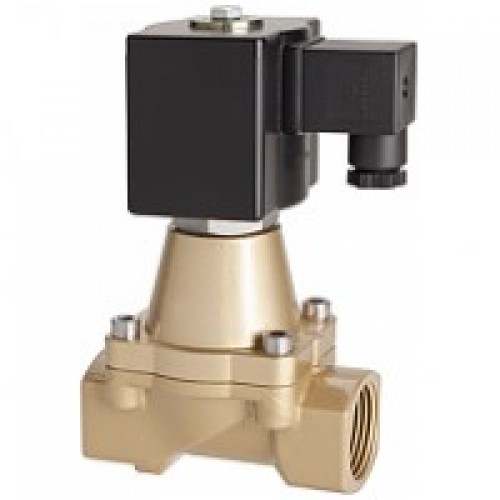

Buschjost solenoid valve without differential pressure Norgren solenoid valve Series 86700/86710

Valve operates without differential pressure
Valve with PTFE piston guide rings
Suitable for vacuum
Technical features
Medium:  Flow direction: Fluid temperature: Materials:
Air, water and oil Determined ¨C20 ... +90! Body: Brass (CW617N)
Switching function: Port size: Ambient temperature: Seat seal: NBR
Normally closed G1/4, G3/8, G1/2, G3/4, G1,   ¨C20 ... +50!  Internal parts:
Operation: G1 1/4, G1 1/2, G2  Stainless steel, PTFE/Carbon
Solenoid actuated,  1/4 NPT, 3/8 NPT, 1/2 NPT,
with forced lifting 3/4 NPT, 1 NPT, 1 1/4 NPT,  For contaminated luids the use
Mounting position: 1 1/2 NPT, 2 NPT  of a strainer upstream of the
Optional,   Operating pressure: valve is recommended.
preferably solenoid   0 !… 25 ba
vertical on top (0 ... 40 bar)


Technical data - standard models
Operating pressure  Weight Model Model
Symbol Port size Oriice Flow kv value *1)
3
/h) *2) (bar) (kg) Solenoid in V d.c. Solenoid in V a.c.
(mm) (m
G1/4 8 2,2 0 ... 25 1,5 8670000.8301.xxxxx 8670000.8304.xxxxx
1/4 NPT 8 2,2 0 ... 25 1,5 8671000.8301.xxxxx 8671000.8304.xxxxx
G3/8 10 3,4 0 ... 25 1,5 8670100.8301.xxxxx 8670100.8304.xxxxx
3/8 NPT 10 3,4 0 ... 25 1,5 8671100.8301.xxxxx 8671100.8304.xxxxx
G1/2 12 4,4 0 ... 25 1,6 8670200.8301.xxxxx 8670200.8304.xxxxx
1/2 NPT 12 4,4 0 ... 25 1,6 8671200.8301.xxxxx 8671200.8304.xxxxx
G3/4 20 6,5 0 ... 25 1,8 8670300.8301.xxxxx 8670300.8304.xxxxx
A
3/4 NPT 20 6,5 0 ... 25 1,8 8671300.8301.xxxxx 8671300.8304.xxxxx
G1 25 10 0 ... 25 2,2 8670400.8301.xxxxx 8670400.8304.xxxxx
P
1 NPT 25 10 0 ... 25 2,2 8671400.8301.xxxxx 8671400.8304.xxxxx
G1 1/4 32 24 0 ... 25 5,6 8670500.8401.xxxxx 8670500.8404.xxxxx
1 1/4 NPT 32 24 0 ... 25 5,6 8671500.8401.xxxxx 8671500.8404.xxxxx
G1 1/2 40 25 0 ... 25 5,4 8670600.8401.xxxxx 8670600.8404.xxxxx
1 1/2 NPT 40 25 0 ... 25 5,4 8671600.8401.xxxxx 8671600.8404.xxxxx
G2 50 41 0 ... 25 6,8 8670700.8401.xxxxx 8670700.8404.xxxxx
2 NPT 50 41 0 ... 25 6,8 8671700.8401.xxxxx 8671700.8404.xxxxx

Port size R ? A H H1 L L1 T Model
G1/4 44 143 132 60 27,5 12 8670000.830x.xxxxx
1/4 NPT 44 143 132 60 27,5 10 8671000.830x.xxxxx
G3/8 44 143 132 60 27,5 12 8670100.830x.xxxxx
3/8 NPT 44 143 132 60 27,5 10,5 8671100.830x.xxxxx
G1/2 44 145 132 67 31 14 8670200.830x.xxxxx
1/2 NPT 44 145 132 67 31 13,5 8671200.830x.xxxxx
G3/4 50 154 137 80 35,5 16 8670300.830x.xxxxx
3/4 NPT 50 154 137 80 35,5 14 8671300.830x.xxxxx
G1 62 164 143,5 95 44 18 8670400.830x.xxxxx
1 NPT 62 164 143,5 95 44 17 8671400.830x.xxxxx
G 1 1/4 92 212,5 183,5 132 60 20 8670500.840x.xxxxx
1 1/4 NPT 92 212,5 183,5 132 60 17 8671500.840x.xxxxx
G1 1/2 92 212,5 183,5 132 60 22 8670600.840x.xxxxx
1 1/2 NPT 92 212,5 183,5 132 60 17 8671600.840x.xxxxx
G2 109 212,5 183,5 160 74 24 8670700.840x.xxxxx
2 NPT 109 212,5 183,5 160 74 17,5 8671700.840x.xxxxx
