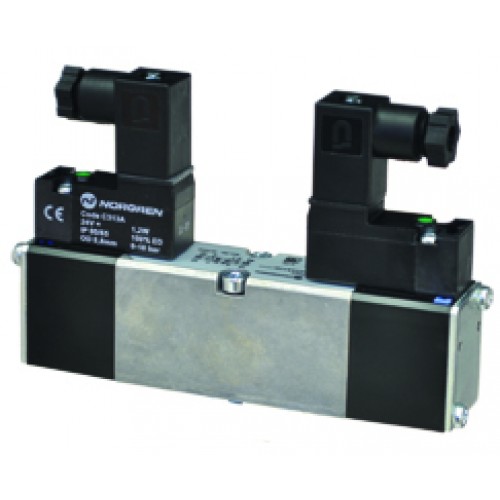

Norgren solenoid subbase valves Mini ISO Valve - Solenoid 2
Item: V44A517D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating;Aluminium alloy |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V44A511D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating;Aluminium alloy |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V44A511D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating;Aluminium alloy |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415611D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/3 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415611D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/3 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415517D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415517D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415511D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Manual override: | Push only |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V415511D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Softseal spool |
| Note: | V41 Operating temperature as shown, V40 Operating temperature is -15 to +80°C |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V405516D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V405516D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V405511D-C318B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 115V 50/60 Hz |
| Pilot: | Internal |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: V405511D-C313B
Features
- High performance, compact design
- Flexible sub-base system
- Multipressure system capability
- Wide range of accessories
- Easy to convert from internal to external pilot supply
- Valve exchange under pressure
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol;Solenoid |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Glandless spool and sleeve |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol;Solenoid |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-1;VDMA 24 563 |
| Spool technology: | Glandless spool and sleeve |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | HNBR |
| Seals & o-rings: | NBR |
| Springs: | Stainless steel |
| Body: | Aluminium alloy;Diecast aluminium |
| Spool & sleeve: | Anodised aluminium |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Write a review
Your Name:Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
