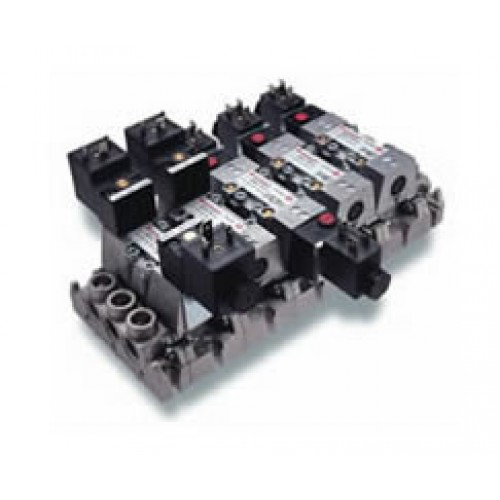

Norgren solenoid subbase valves ISO Star Valve - Solenoid
Item: SXE9573-A80-00K
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #1 |
|---|---|
| Actuation: | Sol/Air Spring |
| Manual override: | Turn to lock |
| Brand: | ISO*STAR |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air |
| Actuation: | Sol/Air Spring |
| ISO size: | ISO #1 |
| Manual override: | Turn to lock |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 80.0 °C |
| Operating Temperature: | 5.0 ... 176.0 °F |
Item: SXE0573-A60-00K
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #1 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Brand: | ISO*STAR |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air |
| Actuation: | Sol/Sol |
| ISO size: | ISO #1 |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 80.0 °C |
| Operating Temperature: | 5.0 ... 176.0 °F |
Item: SXE9674-A60-00K
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #2 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Turn to lock |
| Brand: | ISO*STAR |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| ISO size: | ISO #2 |
| Manual override: | Turn to lock |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Anodised aluminium with special coating |
| Operating Temperature: | -15.0 ... 80.0 °C |
| Operating Temperature: | 5.0 ... 176.0 °F |
Item: SXE9674A600018JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #2 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| ISO size: | ISO #2 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: SXE9674A600013JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #2 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
| Voltage: | 24Vdc |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| Voltage: | 24Vdc |
| ISO size: | ISO #2 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #1 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| ISO size: | ISO #1 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: SXE9673A600013JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #1 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Brand: | ISO*STAR |
| Voltage: | 24Vdc |
| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| Voltage: | 24Vdc |
| ISO size: | ISO #1 |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: SXE9574A800018JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #2 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
| Voltage: | 110/120Vac 50/60Hz |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Voltage: | 110/120Vac 50/60Hz |
| ISO size: | ISO #2 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: SXE9574A800013JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #2 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
| Voltage: | 24Vdc |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Voltage: | 24Vdc |
| ISO size: | ISO #2 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Item: SXE9573A800018JB
Features
- Specially coated glandless spool and sleeve for extremely long life
- Low power solenoids and manual override as standard
- Wide range of sub-bases and accessories
| ISO size: | ISO #1 |
|---|---|
| Connector type: | 22mm Industrial standard |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Manual override: | Combination Locking/Non-Locking |
| Brand: | ISO*STAR |
| Voltage: | 110/120Vac 50/60Hz |
Technical Details
Hide| Brand: | ISO*STAR |
|---|---|
| Media: | Compressed air, filtered (40 µm) and lubricated or non-lubricated |
| Operation: | 5/2 |
| Actuation: | Sol/Air Spring |
| Voltage: | 110/120Vac 50/60Hz |
| ISO size: | ISO #1 |
| Pilot: | Internal |
| Manual override: | Combination Locking/Non-Locking |
| Protection class: | IP65 |
| Standard: | ISO 5599-1;VDMA 24 345 |
| Note: | ISO 1 and ISO 2 with integrated flow regulation |
| Mounting: | Sub-base |
| Connector type: | 22mm Industrial standard |
| Nuts and screws: | Zinc plated steel |
| Seals: | Nitrile rubber;Heat resistant seals |
| Springs: | Stainless steel |
| Body: | Diecast aluminium |
| Spool & sleeve: | Matched aluminium;PTFE coated |
| Operating Temperature: | -15.0 ... 50.0 °C |
| Operating Temperature: | 5.0 ... 122.0 °F |
Write a review
Your Name:Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
