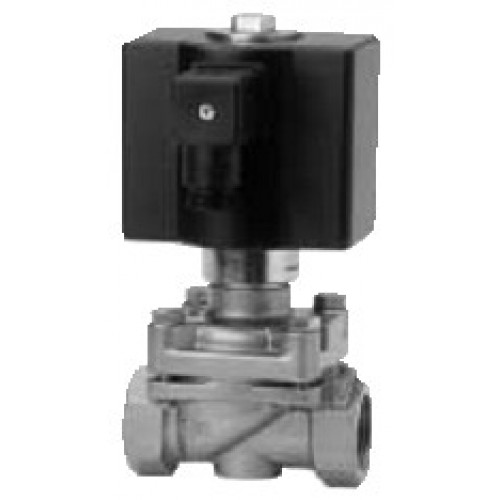

Norgren solenoid valve Series 8 Model 8505 2-Way Stainless Steel Flat Piston Valve

 Suitable for Slightly Aggressive Media Operates at Zero Pressure Differential High Flow Capacity Suitable for Vacuum

Technical Data
Function:
2-Way Normally Closed
2-Way Normally Open (R) Optional
Ports (NPT)OrificeCvOperating Pressure
Range (PSI)
3/8"3/8"4.0
1/2"7/16"4.50 - 360 PSI (0 - 25 bar)
3/4"3/4"13.2All orifice sizes:
1"1"15.50 - 232 PSI (0 - 16 bar) - PTFE
Temperature Rating
Ambient:
14°F to 122°F (-10°C to +50°C)
Fluid:
-4°F to 194°F (-20°C to +90°C) - Buna
-4°F to 230°F (-20°C to +110°C) - EPDM, Fluorocarbon, PTFE
Power Rating:
22 Watt (3/8" NPT, 1/2" NPT)
40 Watt (3/4" NPT, 1" NPT)

Voltage:
24 Volt DC
24/50-60, 110/50-60, 230/50-60 Volt AC
Electrical Connector:
DIN Style Plug with Removable Cable Plug
Adapter
Body:316 Stainless Steel
Piston Seal:
Buna (Standard)
Fluorocarbon, EPDM, PTFE (Optional)
Other Wetted Parts:430F, 316, 304, 301
Stainless Steel
Coil:Class F, Molded, Continuous Duty

Part Number Identification
8505  (R)  0707  (R)  01 (R) Voltage  (R)  Optional
VALVE SERIES
SEAL
ORIFICEPORTS
SUFFIX
01 = Buna
3/8"0707 =3/8" NPT
NO = Normally Open
02 = Fluorocarbon
7/16"0908 =1/2" NPT
CO = 1/2" NPT Conduit
08 = PTFE
3/4"1010 =3/4" NPT
CL = 1/2" NPT Conduit with
24" Lead Wires
13 = EPDM
1"1111 =1" NPT
