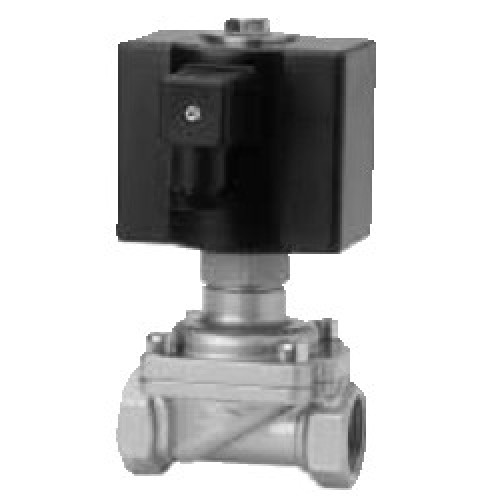

Norgren solenoid valve Series 8 Model 8501 2-Way Brass Flat Piston Valve

Ideal for Control of Neutral Gases and Liquids Hot Water & Steam Valves Available Operates at Zero Pressure Differential Manual Override (R) Optional (3/4" - 2" NPT only) High Flow Capacity

Technical Data
Function:
2-Way Normally Closed
2-Way Normally Open (R) Optional
Ports (NPT)OrificeCvOperating Pressure
Range (PSI)
1/2"7/16"4.5
3/4"3/4"13.20 - 360 PSI (0 - 25 bar)
1"1"15.6All orifice sizes:
1-1/4"1-1/4"36.00 - 232 PSI (0 - 16 bar) - PTFE
1-1/2"1-1/2"37.2
2"2"55.2
Temperature Rating
Ambient:
14°F to 122°F (-10°C to +50°C)
14°F to 140°F (-10°C to +60°C) - PTFE
Fluid:
14°F to 194°F (-10°C to +90°C) - Buna
14°F to 230°F (-10°C to +110°C) - EPDM, Fluorocarbon
14°F to 392°F (-10°C to +200°C) - PTFE

Power Rating:
22 Watt (1/2" NPT)
40 Watt (3/4" NPT to 2" NPT)
Voltage:
24 Volt DC
24/50-60, 110/50-60, 230/50-60 Volt AC
Electrical Connector:
DIN Style Plug with Removable Cable Plug
Adapter
Body:Brass
Piston Seal:Buna (Standard)
Fluorocarbon, EPDM, PTFE (Optional)
Other Wetted Parts:Stainless Steel, Brass,
Gun Metal
Coil:Class F, Molded, Continuous Duty

Part Number Identification
8501  (R)  1111  (R)  01 (R) Voltage  (R)  Optional
VALVE SERIES
SEAL
PORTS
ORIFICE
SUFFIX
01 = Buna
0908 =1/2" NPT
7/16"
NO = Normally Open
02 = Fluorocarbon
1010 =3/4" NPT
3/4"
MO = Manual Override
08 = PTFE
1111 =1" NPT
1"
CO = 1/2" NPT Conduit
13 = EPDM
1212 =1-1/4" NPT
1-1/4"
CL = 1/2" NPT Conduit with
24" Lead Wires
1313 =1-1/2" NPT
1-1/2"
1414 =2" NPT
2"
