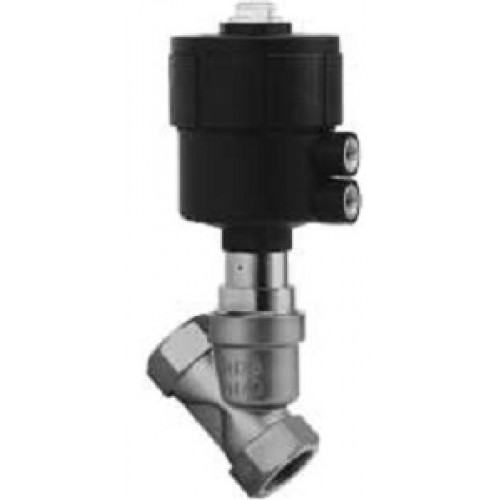

Norgren solenoid valve Series 8 Model 8453 2-Way Stainless Steel Angle Seat Valve

Ideal for Control of Aggressive Gases and Liquids High Flow Rate Waterhammer-Free Suitable for Slurries Optical Position Indicator Standard High Pressure Version Optional Vacuum Service Compatible

Technical Data
Function:
2-Way Normally Closed
2-Way Normally Open (R) Optional
2-Way Double-Acting (R) Optional
Flow Direction:Fixed, Underseat
Ports (NPT)OrificeCvOperating PressurePilot Pressure
Range* (PSI)Range (PSI)
1/2"1/2"5.80 - 232 (580)**51 - 145
3/4"3/4"12.00 - 145 (232)**51 - 145
1"1"16.80 - 14551 - 145
1-1/4"1-1/4"27.60 - 10251 - 145
1-1/2"1-1/2"36.00 - 6551 - 145
2"2"44.40 - 4451 - 145
*  Operating pressure range based on gaseous and liquid fluids up to 600 mm2/s
** High Pressure Version (see Part Number Identification below)

Temperature Rating
Media:
14°F to 356°F (-10°C to +180°C)
Ambient:
14°F to 140°F (-10°C to +60°C)
Body:Stainless Steel
Seal:PTFE
Other Wetted Parts:Stainless Steel
Actuator:30% Glass-Filled Polyamid 66

Part Number Identification
8453  (R)  0909  (R)  08 (R)  Voltage  (R)  Optional
VALVE SERIES
SEAL
ORIFICEPORTS
SUFFIX
08 = PTFE
1/2"0909 =1/2" NPT
NO = Normally Open
3/4"1010 =3/4" NPT
DA = Double Acting
(4/2-  or 5/2-way pilot valve required)
1"1111 =1" NPT
HP = High Pressure
1-1/4"1212 =1-1/4"  NPT
1-1/2"1313 =1-1/2"  NPT
2"1414 =2" NPT
