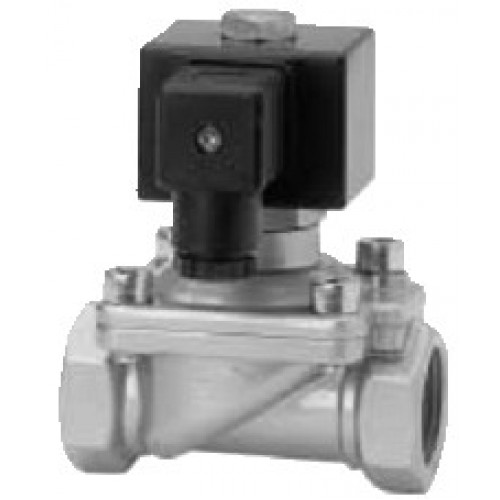

Norgren solenoid valve Series 8 Model 8265 2-Way Brass Diaphragm Valve

 Ideal for Control of Neutral Gases and Liquids Hot Water & Steam Valves Available Operates at Zero Pressure Differential  High Flow Capacity Suitable For Vacuum

Technical Data
Function:2-Way Normally Closed
Ports (NPT)OrificeCvOperating Pressure
Range (PSI)
1/4"5/16"2.3DC Valves:0 - 116 PSI (0 - 8 bar)
3/8"3/8"3.1AC Valves:0 - 232 PSI (0 - 16 bar)
1/2"1/2"3.8All Steam Valves (HNBR Seal):
3/4"3/4"9.00 - 145 PSI (0 - 10 bar)
1"1"12.0
Temperature Rating
Ambient:
14°F to 122°F (-10°C to +50°C)
14°F to 140°F (-10°C to +60°C) - HNBR
Fluid:
14°F to 194°F (-10°C to +90°C) - Buna
14°F to 230°F (-10°C to +110°C) - EPDM, Fluorocarbon
14°F to 302°F (-10°C to +150°C) - HNBR
Power Rating:18 Watt

Voltage:
24 Volt DC
24/50, 110/50, 120/60, 220/60,
230/50 Volt AC
Electrical Connector:
DIN Style Plug with Removable Cable Plug
Adapter
Body:Brass
Diaphragm:
Buna (Standard)
Fluorocarbon, EPDM, HNBR (Optional)
Other Wetted Parts:Brass, PVDF, 430F
Stainless, 304 Stainless
Coil:Class F, Molded, Continuous Duty, UL
Recognized

Part Number Identification
A8  (R) 8265  (R)  1111  (R)  01 (R) U (R) Voltage  (R)  Optional
VALVE SERIES
SEAL
ORIFICEPORTS
SUFFIX
01 = Buna
5/16"0506 = 1/4" NPT
CO = 1/2"NPT Conduit
02 = Fluorocarbon
3/8"0707 = 3/8" NPT
CL= 1/2"NPT Conduit with
24"Lead Wires
13 = EPDM
1/2"0909 = 1/2" NPT
51 = HNBR (Steam)*
3/4"1010 = 3/4" NPT
* Note:Valves with seal option 51 (HNBR)
1"1111 =    1" NPT
are not available with UL recognized coils.
