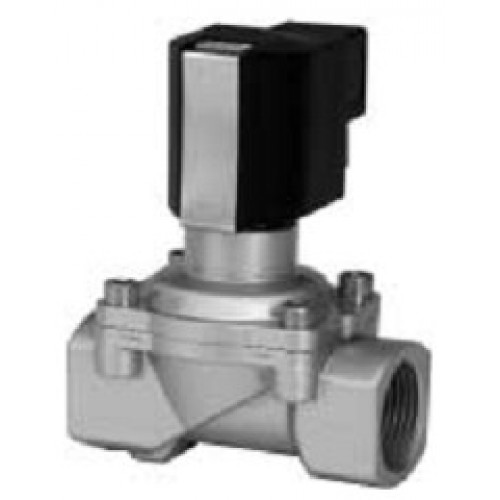

Norgren solenoid valve Series 8 Model 8264 2-Way Brass Diaphragm Valve

 Ideal for Control of Neutral Gases and Liquids Zero Pressure Differential  Interchangeable °Click-On°Coil Normally Open (R) Optional Suitable for Vacuum

Technical Data
Function:
2-Way Normally Closed
2-Way Normally Open (R) Optional
Ports (NPT)OrificeCvOperating Pressure
Range (PSI)
1/4"5/16"2.30 - 145 PSI (0 - 10 bar)
3/8"3/8"3.60 - 145 PSI (0 - 10 bar)
1/2"7/16"4.10 - 145 PSI (0 - 10 bar)
3/4"3/4"7.00 - 145 PSI (0 - 10 bar)
1"1"9.60 - 145 PSI (0 - 10 bar)
Temperature Rating:
Ambient:
14°F to 122°F (-10°C to +50°C)
Fluid:
14°F to 194°F (-10°C to +90°C) - Buna
14°F to 230°F (-10°C to +110°C) - Fluorocarbon, EPDM
Power Rating:18 Watt

Voltage:
24 Volt DC
24/50-60, 42/50-60, 110/50-60, 230/50-60
Volt AC
Electrical Connector:
DIN Style Plug with Removable Cable Plug
Adapter
Body:Brass
Seal:
Buna (Standard)
Fluorocarbon, EPDM (Optional)
Other Wetted Parts:Stainless Steel, PVDF
Coil:Class F, Molded, Continuous Duty

Part Number Identification
8264  (R)  1111  (R)  01 (R) Voltage  (R)  Optional
VALVE SERIES
SEAL
ORIFICEPORTS
SUFFIX
01 = Buna
5/16"0506 = 1/4" NPT
NO = Normally Open
02 = Fluorocarbon
3/8"0707 = 3/8" NPT
CO= 1/2"NPT Conduit
13 = EPDM
7/16"0908 = 1/2" NPT
CL= 1/2"NPT Conduit with
24"Lead Wires
3/4"1010 = 3/4" NPT
1"1111 =   1"NPT
