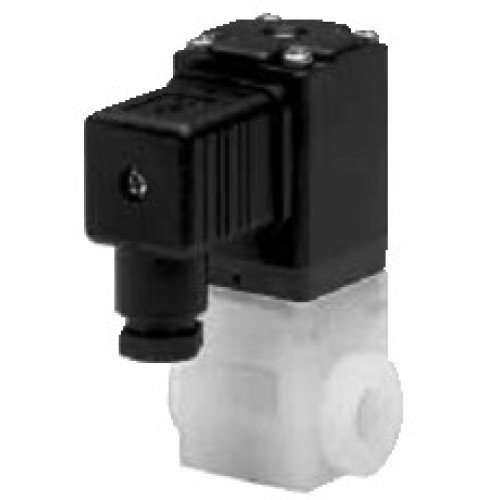

Norgren solenoid valve Series 8 Model 8208 2-Way Plastic Media Isolation Valve

 Excellent Resistance to Aggressive Media PVDF Body / PTFE Bellows  Simple Compact Design  Value Priced

Technical Data
Function:
2-Way Normally Closed
Ports (NPT)OrificeCvOperating Pressure
Range* (PSI)
G1/41/8"0.280 - 100
G3/83/16"0.500 - 72
1"1/4"0.740 - 29
1/4"5/16"1.00 - 14
Temperature Rating
Ambient:32°F to 122°F (0°C to +50°C)
Fluid:14°F to 230°F (-10°C to +110°C)
Power Rating:12 Watt
Voltage:
24 Volt DC
24/50-60, 120/50-60, 230/50-60 Volt AC

Electrical Connector:
DIN Style Plug with Removable Cable Plug
Adapter
Body:PVDF
Bellows:PTFE
Tube Fitting:Delrin
Seat Seal:
EPDM (Standard)
Fluorocarbon, PTFE (Optional)
Coil:Class F, Molded, Continuous Duty

Part Number Identification
(R)C(R)
(R)
8208
250213
VoltageOptional
SEALVALVE SERIES
PORTS
ORIFICE
SUFFIX
02 = Fluorocarbon
02 = 1/8"
CO = 1/2"NPT Conduit
95 = 1/4" Tube Fitting
08 = PTFE
04 = 3/16"
CL= 1/2"NPT Conduit with
25 = G 1/4
24"Lead Wires
13 = EPDM
05 = 1/4"
27 = G 3/8
06 = 5/16"
