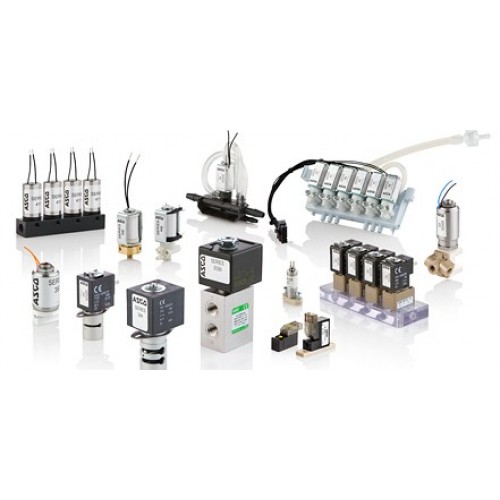

ASCO Miniature Valve Accessories Solenoid Valve Optional Features

ASCO offers a wide range of electrical and mechanical options which can customize valves to your precise application.

Optional Electrical Features
Most optional electrical features shown here can be
included on ASCO valves approved by UL, FM, and CSA.
Identify the options you want by adding the appropriate
prefix to the catalog number of the valve you are
specifying.
To determine the proper prefix, use the Valve Series
Specification Table for the valve you are ordering to
determine its watt rating/class of coil insulation.
RedHat II Solenoid Options
Using Table 3, find the desired solenoid option in the left
column and the watt rating/class of coil insulation in the
next column. The choice of prefixes is shown in the next
two columns on that line. The first column indicates the
prefix if Class F temperature protection  is sufficient for
your requirements. The second column provides the
desired solenoid option, plus the higher temperature
protection of a Class H coil.
For example, to select an 8262H002 valve with a Class H
Open Frame Spade Terminal Solenoid, assuming the
voltage to be 120 volts AC, 60 Hz:
In the Specification Table for Series 8262, the Watt
Rating/Class of Coil Insulation is 6.1/F for Catalog
Number 8262H002.
Using Table 3, find the listing for !°Open Fram
Solenoid with Spade Terminal Coil!± in the left
column. Then, find 6.1/F under AC coils in the next
column. Reading across the column headed !°Class H
Coil,!± you!ˉll find the prefix !°OFST.!± To order, spec
Catalog Number OFST8262H002, 120/60.
(Note: Always include the voltage and frequency.
)
