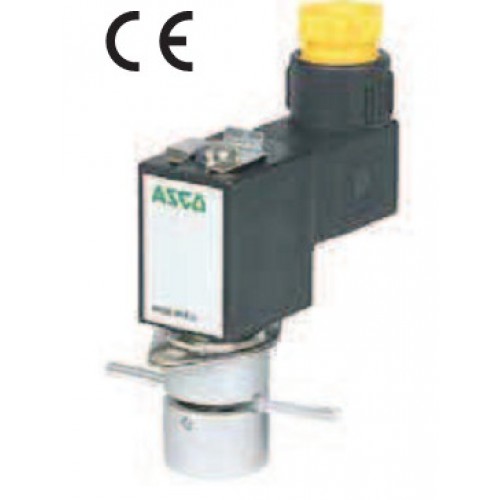

ASCO Pinch Valves 284 Series - 17 to 42mm Solenoid

The 284 Series are 2-Way, normally closed and normally open,
solenoid operated pinch valves designed to control the flow of
corrosive or high purity fluids in medical equipment, analytical
instruments, and industrial applications. Pinch valves control fluid
flow by locating soft tubing in a mechanism that !°pinches!± th
tubing to block flow and releases to allow flow.Large open gap for high flow and handling of particulate media.Zero dead volume prevents cross-contamination.Electrical connections can be kept separate from fluid area via
built-in panel mount bracket.Built-in manual operator for easy tubing change out and testing.Removable/Rotatable coil for easy service and installation.

• 2/2 normally closed & normally open constructions
• 0.030-0.250" tubing ID
• Up to 12psi
• Integrated manual override
• ~20ms response time
• Meets CE directives
