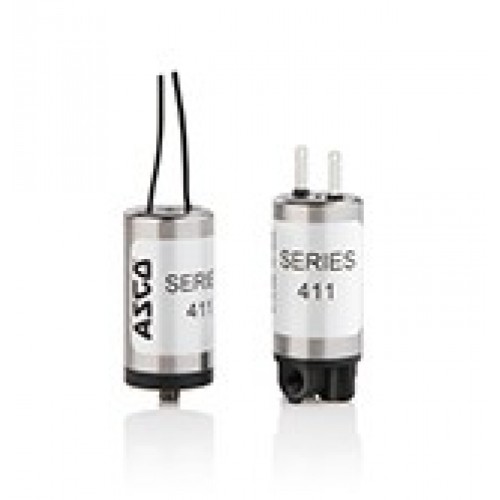

ASCO Miniature Valves General Service 411 Series - 19mm Solenoid

The 411 Series is available in 2-way and 3-way constructions,
designed to control the flow of air and inert gases. The valves are
suitable for a wide range of OEM applications where small size, low
power, and long life are critical.Cycle life in the hundreds of millionsCorrosion resistant materials of constructionManifold mount construction allows for easy assemblyLower power consumption offers extended battery life

Clean for Oxygen Service available

• 2/2 & 3/2 normally closed
• Manifold and Inline Mount with #10-32 or M5 threads
• 0.025-0.080" orifice
• Vacuum to 100psi
• 0.65 to 2.0 Watt
• ~10ms response time
• Stainless steel body option
• RoHS compliant
• Meets CE directives

411L1124HV, 411L2324HV, 411L3112HV, 411L3324HV, 411M1124HV, 8220G411 - 120/60,110/50, 290411-001, 411M2112HV, EF 8220G411 - 120/60,110/50 , 411L1112HV, 411L2224HV, 411L2312HV, 411L3124HV, 411L3212HV, 411L3224HV, 411L3312HVO, 411M1112HV, 411M2112HVO, 411M2212HV, 411M2312HV, 411M2324HV, 8220G411 - 110/50 , 8220G411 - 120/60 , 8220G411 - 220/50, 8220G411 - 24/60 , 8220G411 - 240/60,220/50 , 8220G411 - 240/60 , 302411, 411K2112HV, 411L1112HVO, 411L1112HVP, 411L1124HB, 411L1124HVP, 411L2-0003, 411L2112HV, 411L2112HVP, 411L2124HB, 411L2124HVO, 411L2124HVOP, 411L2124HVP, 411L2-0003, 411L2112HV, 411L2112HVP, 411L2124HB, 411L2124HVO, 411L2124HVOP, 411L2124HVP, 411L2212HV, 411L2224HB, 411L2312HVO, 411L2324HVP, 411L3-0009, 411L3112HVO, 411L3124HB, 411L3124HVO, 411L3124HVOP, 411L3124HVP
