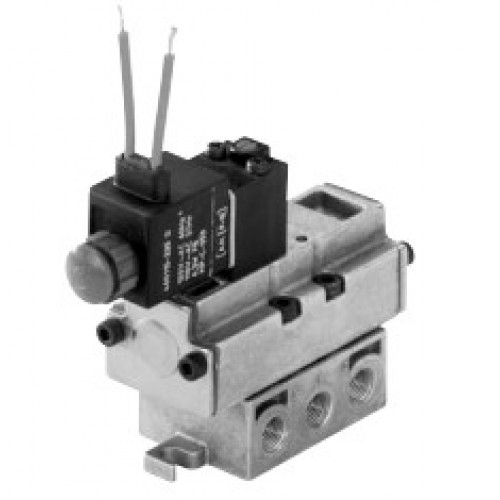

ASCO RedHat Solenoid Valves Dust Collector 4-Way 8401 Series

The 8401 series are 5 ported miniature directional control slide valves. They are available with aluminum bodies in a sub-base mounted or manifold mounted configuration. The 8401 series is AC or DC operated with either single or dual solenoids. There are many optional features available for both series including solenoid enclosures, flow control, manual operator, and electrical connections.

Features
Unique sliding, sealing member
Optional flow control regulates cylinder speed in
either direction
Dual solenoid versions hold last position, even after
loss of electric power
4-WAY
Dual solenoid operation: solenoid may be energized
momentarily (1/10 second) or continuously
Air/inert gas service only
Durable and !°non-sticking!± sealing meth
Standard manual operator both momentary
and maintained
Optional flow control provides adjustable Cv from
0.2 to 0.8
