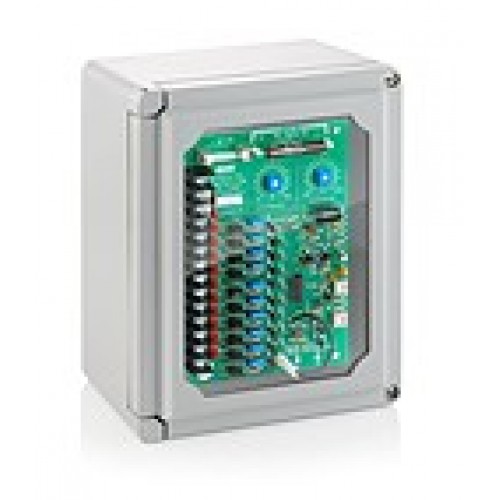

ASCO RedHat Solenoid Valves Dust Collector Sequential Controller

The sequential controller is designed to operate the ASCO pilot valves used on dust collector equipment.

Specifications
Input Voltage Range: 102 to 132 volts, 60 Hz.
Input Fuse: 3 amp, 125 volt, type AGC.
Pulse Duration Range of Adjustability: 20 to 200 milliseconds.
Number of Sequenced Steps: 2 through 10, adjustable in field,
(factory set at 10).
SEQUENTIALCONTROLLER CAT #214B281
CSA CERTIFIED
Temperature Range:
ENCLOSURES CAT # 125483-1 (CLOSED)
Operating: -10F to +130F (-23C to 54C)
125483-2 (WINDOW)
Storage: -20F to +150F (-29C to 66C)
CSA & UL APPROVED TYPES 3, 4X & 12
Repetitive Accuracy on Time Sequences: °?5
Current Ratings per Sequence Step:
Maximum Inrush Current: 7.5 amps at 120 60 Hz.
Maximum Continuous Current: 2.0 amps at 120 60 Hz.
(NOTE: Solid-state elements require that minimum continuous current per sequence
step must not be less than 0.050 amperes. Consult factory for special rating
requirements including operation below 0.050 amperes).
Dimensions, open type: 9° high x 7° wide x 5° deep.
Mounting: Four 3/4° long stand-offs are supplied for mounting within enclosure.
Load Fuse: 2 amp maximum required.
