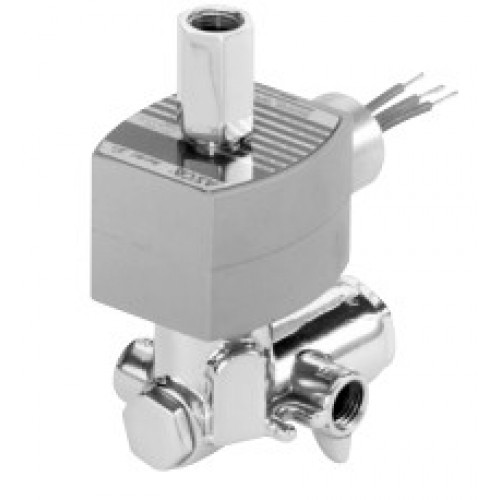

ASCO RedHat Solenoid Valves 4-Way 8345 Series

4/2 - Compact, Air/inert Gas, Water,Lt Oil – 1/4″
Solenoid pilot operated valves available AC or DC operated with brass or 316 stainless steel bodies. Operating pressures of 10-150 psi.

8345G001 - 120/60,110/50, 8345G001 - 24/DC, 8345G001 MO - 120/60,110/50,8345G001 V - 120/60,110/50, 8345H003 - 120/60,110/50, 8345H003 V - 120/60,110/50, EF 8345G001 - 120/60,110/50, EF 8345G001 - 24/DC, EF 8345G001 MO - 120/60,110/50, EF 8345H003 - 120/60,110/50,  EF HT 8345G001 - 120/60,110/50,8345G001 - 110/50, 8345G001 - 208/60, 8345G001 - 220/50, 8345G001 - 24/60, 8345G001 - 240/60,220/50, 8345G001 - 240/60,  8345G001 - 480/60,440/50, 8345G001 - 480/60, 8345G001 - 12/DC, 8345G001 MO - 110/50, 8345G001 MO - 120/60, 8345G001 MO - 208/60, 8345G001 MO - 220/50, 8345G001 MO - 24/60, 8345G001 MO - 240/60,220/50, 8345G001 MO - 240/60,  8345G001 MO - 480/60,440/50, 8345G001 MO - 480/60, 8345G001 MO - 12/DC, 8345G001 MO - 24/DC, 8345G001 V - 110/50, 8345G001 V - 120/60, 8345G001 V - 208/60, 8345G001 V - 220/50, 8345G001 V - 24/60, 8345G001 V - 240/60,220/50, 8345G001 V - 240/60, 8345G001 V - 480/60,440/50, 8345G001 V - 480/60, 8345G001 V - 12/DC, 8345G001 V - 24/DC, 8345G301 - 24/DC, 8345H003 - 110/50, 8345H003 - 120/60, 8345H003 - 208/60, 8345H003 - 220/50, 8345H003 - 24/60, 8345H003 - 240/60,220/50

Features
• Compact valves for general service applications
• Low-cost, 4-way valve when low flow is sufficient
• Mountable in any position
EB
A
P
EA
B
Solenoid Enclosures
Nominal Ambient Temp. Ranges
AC: 32˚F to 125˚F (0˚C to 52˚C)
DC: 32˚F to 104˚F (0˚C to 40˚C)
Refer to Engineering Section for details.
Approvals
CSA certified. UL listed as General Purpose Valve.
EV8345G081 solenoid only UL approved.
Meets applicable CE directives.
Refer to Engineering Section for details.
Important
A Minimum Operating Pressure Differential must be
maintained between the pressure and exhaust ports.
Supply and exhaust piping must be full area, unrestricted.
ASCO flow controls and other similar components must
be installed in the cylinder lines only.
Refer to Engineering Section for details.
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.
(To order, add prefix “EF” or, for Explosionproof Stainless Steel trim and hub
on Brass-Bodied valves, add “EV” to catalog number.)
See Optional Features Section for other available options.
Construction
Pilot Operated
General Service Solenoid Valves
Brass and 316 Stainless Steel Bodies • 1/4" NPT
Valve Parts in Contact with Fluids
Body                        Brass  316 Stainless Steel
Seals and Disc NBR and PA
Core Tube  305 Stainless Steel
Core and Plugnut             430F Stainless Steel
Springs   302 Stainless Steel
Shading Coil         Copper Silver
Piston   PA
Standard
Coil and
Class of
Insulation
Watt Rating and Power
Consumption Spare Coil Part Number
DC
Watts
AC
General
Purpose
Explosionproof
(EF)
Explosionproof
(EV)
Watts
VA
Holding
VA
Inrush AC DC AC DC AC DC
F 11.6 10.1 25 50 238610 238710 238614 238714 274614 274714
Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz).
6, 12, 24, 120, 240 volts DC. Must be specified
