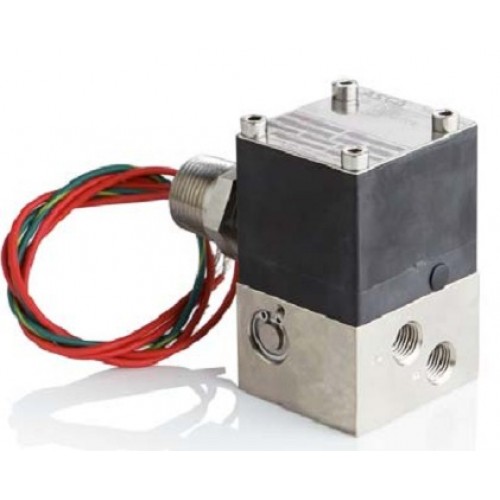

ASCO RedHat Solenoid Valves 3-Way 8355 Series

Pilot Operated Poppet Valves- 1/4"
.05 Watt solenoid valves available in brass and 316L stainless steel.

Features
Explosionproof, Type 4 & 4X Low Power and
Intrinsically Safe solenoids
Poppet design provides durability and reliability in a
wide range of ambient temperatures
Nickel plated brass, or 316 stainless steel bodies
designed for harsh process conditions
High efficiency, low wattage coils at 0.5w
1/4" NPT inline connection
Cv factor of 0.9
Easy positioning with adjustable stainless steel
2
conduit coupler
3
1
Construction
Part Material
Body Nickel Plated Brass, 316 Stainless Steel
Solenoid Enclosure Ryton (Polyphenylene Sulfide)
Seals and Disc Buna !°N
Electrical
DC
12V  24V
120/60 AC IS 24VDC
Nominal Watt Rating 2.0w .5w .5w .5w
Operating Current 25.3mA 30mA 15mA 29mA12V compatible with DeviceNet, 24V compatible with AS-i
See next page for IS Entity Parameters.
Ambient Temperatures
-4F to 158?F (-20C to 70C)
Ratings and Approvals
EE - Class I, Div. 1, Groups A,B,C, & D Class II, Div. 1,
Groups E,F, & G Non-incendive Class I, Div. 2, Groups
Solenoid Enclosures
A,B,C, & D Class II, Div. 2, Groups F & G Hazardous
Enclosure Option Code
locations Class I, Zone 1 AEx d m IIC T6 @ 70?C
EE- Div. 1 with 3/4" MNPT connector
AS - Intrinsically Safe Class I, II, III, Div. 1,
AS- Intrinsically Safe with 3/4" MNPT connector
Groups A-G, Class I, Zone 0, AEx ia IIC T6 @ 70C
Voltage Codes
ATEX category 1G, Operator Only
AG - 120/60
II 1G EEx i a IIC T6
D1 - 12/DC
KEMA 03ATEX 1173X
D2 - 24/DC
Optional Features
Specify suffix codes for manual operators
MI - Momentary (push in & hold)
MS - Sustained (push in & turn)
