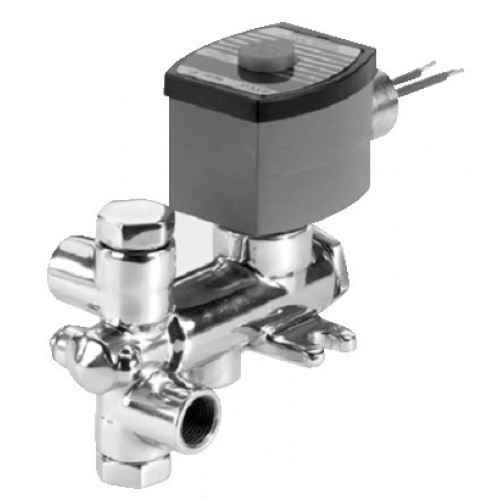

ASCO RedHat Solenoid Valves 3-Way 8315 Series

Direct Acting Lever Design – 1/4″–1/2″
Solenoid pilot operated diaphragm valves available either AC or DC operated with brass bodies for hot water applications.

Features
Designed for high flow and high pressure service
3-WAY
Direct acting, requires no minimum operating pressure
Choice of metal seating materials to handle aggressive
fluids, or resilient seating for airtight shutoff
Ideal for power plants and similar applications
Construction
Valve Parts in Contact with Fluids
Body                        Brass  304 Stainless Steel
Disc  303 Stainless Steel (Metal), PA, or Brass (Resilient)
Seats             NBR, Phosphor Bronze 303 Stainless Steel
Core Tube 305 Stainless Steel
Core and Plugnut         430F Stainless Steel
Springs     302 Stainless Steel, 17-7PH, or Iconel
1
NC
Shading Coil                   Copper Silver
2
3
Gaskets NBR PTFE
NO
U
Electrical
Watt Rating and Power
ConsumptionSpare Coil Part Number
Standard
AC General PurposeExplosionproof
Coil and
Class of DC VA VA
Insulation Watts Watts Holding InrushACDCACDC
F - 20.1 43 240 272610 - 272614 -
H 36.2 28 60 330 222345 222184 222345 222184
H - 16.1 35 180 272810 - 272814 -
H - 28.2 50 385 224195 - 224195 -
Standard Voltages:24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz).
6, 12, 24,120, 240 volts DC. Must be specified when ordering.
(Note: 24 volt AC, 60 Hz not available with 28.2 watt coil)
Note:125 and 250 volts DC are battery voltages applied in power plants. Special AC
Nominal Ambient Temp. Ranges:
and DC constructions are available to pilot power plant control valves. Consult your
Class F Coils AC:  32F to 125F (0C to 52C)
local ASCO sales office for details.
Class H Coils AC:  32F to 140F (0C to 59C)
Class H Coils DC:  32F to 77F (0C to 25C)
(104F/40C occasionally)
Solenoid Enclosures
Refer to Engineering Section for details.
Standard:RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type 1.
Optional:RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P,
7, and 9; RedHat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9.
Approvals
See footnote on next page. (To order, add prefix °∞EF°± to catalog number.
CSA certified (8300 Series only).
See Optional Features Section for other available options.
Meets applicable CE directives.
Refer to Engineering Section for details.
