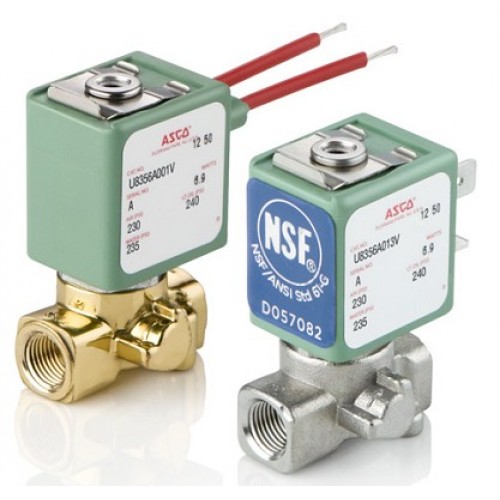

ASCO RedHat Solenoid Valves 3-Way 8356 Series
Sub-Miniature Poppet – 1/8″
Direct acting solenoid valves in Normally Closed, Normally Open, Universal configurations. Available either AC or DC operated in brass or 316 stainless steel bodies and with or without manual operators. Small poppet valve well suited for a wide variety of Air, Water, Lt. Oil Applications. Recommended for use in place of the 8325 Series Valves.
Features
3-way normally closed, normally open, or
3-WAY
ANSI Accredited Program
PRODUCT CERTIFICATION
universal operation
Compact design
Brass and 316 stainless steel body constructions
Mountable in any position
NSF 61 Annex G and 169 version available for potable
water and food service
Construction
Valve Parts in Contact with Fluids
General PurposeNSF
Body Brass 316 Stainless Steel 316 Stainless Steel
Core Tube/Bonnet S.S. / Plated SteelS.S. / S.S.S.S. / S.S.
Core and Plugnut Stainless Steel
1
1
1
Springs Stainless Steel
NO
NC
U
Seals and Disc FKM EPDM
3
2
3
2
2
3
Shading Coil CopperCopper
3
Electrical
Watt Rating and
Power Consumption
Standard
Spare Coil
AC
Coil and
Family
AmbientDC VA VA
Class of
Prefix Insulation Temp.?FWatts Watts Holding Inrush AC DC
U F 6.9 6.3 8.8 12.1 15 to 140 400117 400117
SC F 6.9 6.3 8.8 12.1 15 to 140 400127 400127
1
2
Standard voltages: 24,120, 240 volts AC, 50-60 Hz. 12, 24, 120 volts DC
Must be specified when ordering.
Solenoid Enclosures
Approvals
Standard: Open frame (Prefix U) 18" leads
UL recognized coil - File E153691
Optional: DIN (size 11mm, form B) (Prefix SC). Watertight/IP-65 when
used with DIN connector kit for SC coils (see kits below).
CSA certified coil - see CSA certificate No. 113111
Meets applicable CE directives
NSF (Designated models only, see table)
Kits
1/2" NPT conduit hub kit for leaded coils 224735-001-*
NSF 61 - Drinking water system components
(Kit contains 10 pcs of each: threaded hub, gasket, and attaching screw.)
NSF 169 - Special purpose food Equipment
and Devices
DIN connector kit for SC coils 226061-001-*
(Kit contains 10 pcs of each: connector, gasket, and attaching screw.)
?Also certified to NSF/ANSI Standard 61, Annex G
(weighted average lead content of <=0.25%) and is
Mounting adapter kit 289719 (Kit contains 2 screws and plate.)
in compliance with California's Health & Safety Code
M5 to 1/8" port adaptors: HV289666001 (Brass), HV289667001 (SS)
Section 116875 (commonly known as AB1953) and
(Kit contains 10 pcs)
Vermont Act 193.
The NSF Certification Program is accredited by
the Standards Council of Canada and ANSI.
