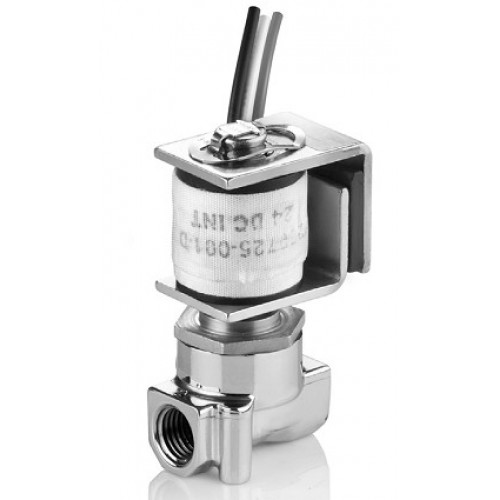

ASCO RedHat Solenoid Valves 2-Way Solenoid Valves MU8262 Series

Magnetic Latching - 1/8"-3/8" - Available in normally closed constructions with brass and stainless steel bodies. Good for applications where contiuous power supply is not readily available. DC constructions only.

Features
Ideal for remote applications where continuously
powered devices can!ˉt be used, such as irrigation system
Pressures up to 2025 psi
Brass and Stainless Steel constructions
Construction
Valve Parts in Contact with Fluids
Body                       Brass   Cast 304 Stainless Steel
Seals and Discs       NBR / UR
Core Tube   305 Stainless Steel
Core and Plugnut    430F Stainless Steel
Springs Stainless Steel
Shading Coil           Copper  Silver
NC
Electrical
Watt Rating and
Spare Coil Part No.
Power Consumption
Standard Coil
DC General Purpose
and Class of
Watts DC
Insulation
A 33.2 230725
Standard Voltages: 6, 12, 24 VDC.Must be specified when ordering.
Other voltages available when required.
Solenoid Enclosures
SPECIAL
Standard: Open Frame
SERVICE VALVES
Options
Panel Mount (prefix GP)
Nominal Ambient Temp. Ranges
Mounting bracket (suffix MB)
32F to 104F (-0C to 40C)
Silicone Free Service (suffix SF)
Refer to Engineering Section for details.
Elastomers: FKM (suffix V), EPDM (suffix E), Neoprene (suffix J),
PTFE (suffix T)
Refer to Engineering Section for fluid and temperature compatibility.
