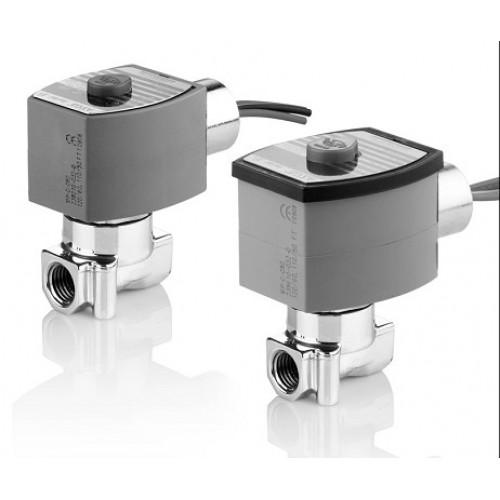

ASCO RedHat Solenoid Valves 2-Way 8262P Series

Dry Air - 1/4"- Direct acting soleonid poppet valves available in normally closed constructions with brass and stainless steel bodies.

Features
2-way normally closed operation
Pressures up to 540 psi
 UL and CSA agency approvals
Suitable for low ambient environments
(-13?F standard, -40?F optional)
Construction
Valve Parts in Contact with Fluids
Body                       Brass   Cast 304 Stainless Steel
Seals and Discs       NBR
Core Tube   305 Stainless Steel
Core and Plugnut    430F Stainless Steel
Core Guide Acetel
Rider Ring PTFE
Springs Inconel 600
Shading Coil           Copper  Silver
NC
Electrical
Watt Rating and
Spare Coil Part No.
Power Consumption
Standard
AC General Purpose Explosionproof
Coil and
VA VA
Class of
Watts Holding Inrush AC AC
Insulation
F 10.1 25 50 238610 238614
F17.14070238610238614
Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz).
Must be specified when ordering. Other voltages available when required.
SPECIAL
SERVICE VALVES
Solenoid Enclosures
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional:Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.
(To order, add prefix °∞EF°± to catalog numbe
Nominal Ambient Temp. Ranges
See Optional Features Section for other available options.
Standard: -13F to 131F (-25C to 55C)*
*Max ambient for explosionproof (EF) is 125F (52C)
Options
Optional: For AC, the max. ambient temp. is 140F (60C)
Panel Mount (prefix GP)
with Class H coil (with or without prefix EF)
Mounting bracket (suffix MB)
Refer to Engineering Section for details.
Vacuum Service (suffix VVM, VVH;
see Vacuum Section for more details.)
Silicone Free Service (suffix SF)
Approvals
Elastomers: FKM (suffix V), Low Temp. NBR (suffix A)
CSA certified. UL listed, Safety Shutoff Valves.
Refer to Engineering Section for fluid and temperature compatibility.
Meets applicable CE directives.
Refer to Engineering Section for details.
