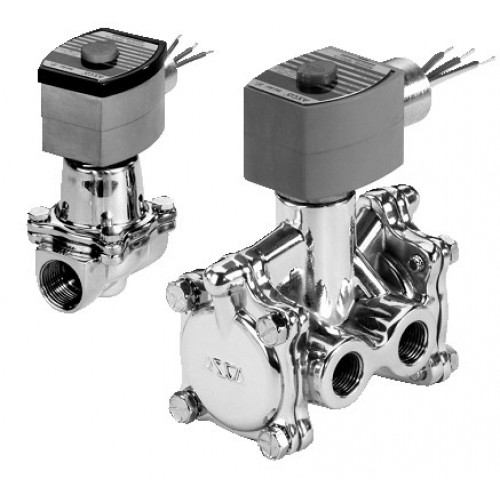

ASCO RedHat Solenoid Valves 2-Way 8215Q Series

5 million cycle capability – 1″–2″
Solenoid pilot operated diaphragm valves available AC operated in normally closed and normally open constructions with aluminum bodies.

Features
Design eliminates metal-to-metal contact to extend
life up to 20 million cycles in dry air or gas applications
Internal AC hum and metallic click at energization are
eliminated. Quiet operating
Easily handles applications involving rapid cycling or
continuous energization
Construction
Valve Parts in Contact with Fluids
Core Bumpers    UR
Rider Rings PTFE
For more information, see individual Series in General Service Valve Section.
Electrical
Watt Rating and Power
ConsumptionSpare Coil Part Number
Standard
AC General PurposeExplosionproof
Coil and
Class of DC VA VA
Insulation Watts Watts Holding InrushACAC
F 15.1 22 22 270110 270114
Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz).
Must be specified when ordering.
Consult your local ASCO sales office for DC voltages.
Note:
SPECIAL
SERVICE VALVES
8215
Solenoid Enclosures
Nominal Ambient Temp. Ranges
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Series 8262: 32F to 131F (0C to 55C)*
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.
* Max. ambient for explosionproof (EF) is 125F (52C)
(To order, add prefix °∞EF°± to catalog number.
All others: 32F to 104F (0C to 40C)
See Optional Features Section for other available options.
Refer to Engineering Section for details.
