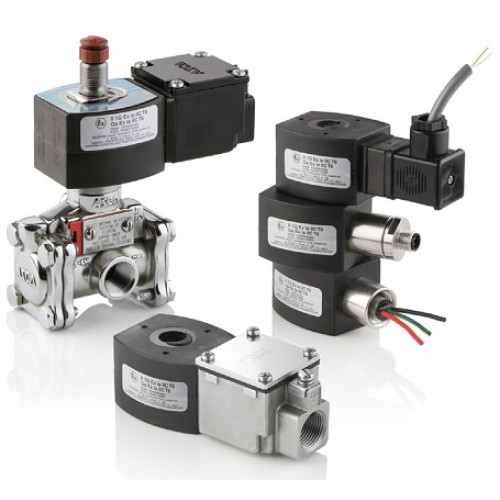

ASCO RedHat Solenoid Valves 2-Way Solenoid Valves JPIS8262 Series

Direct Acting Poppet – 1/4″
Direct acting normally closed solenoid poppet valves available in brass or stainless steel bodies. High flow and a variety of elastomers for a wide range of applications.

Features
Available in 4 different coil terminations H Class coil construction
Designed solely for installation in intrinsically safe
or NIFW areas, with properly approved and sized
limiting barriers
Compatible with supervisory current applications
 Mountable in any position
Enclosure Ratings
Catalog  Enclosure Enclosure
Prefix Description Type Rating IP Rating
4, 4X IP66
IS 1/2" NPT Conduit
6, 6P IP67
4, 4X IP66
Aluminum Junction Box
JPIS
with 1/2" NPT Conduit
6, 6P IP67
4, 4X IP66
316L Stainless Steel Junction Box
JSIS
with 1/2" NPT Conduit
6, 6P IP67
24VDC Spare Coil Part Number
ISVT5-Pin (Male M12)NAIP20
IS
298006-002-D*
PILOT
ISSC DIN (Form A) NA IP20
ISSC, JPIS, JSIS
298008-002-*
ISVT
272401-047-*
SPECIAL SERVICE
Note: For 12VDC, 48VDC and 125VDC coil PN consult factory
Valve Construction
Valve Parts in Contact with Fluids
Ordering Information
Body Aluminum Brass Stainless Steel
Seals and Discs  PUR, NBR, FKM as listed
Example:
Sleeve 430 Stainless Steel
With Junction Box ¨C JPIS8314B30
Core and Plugnut 430F Stainless Steel
With 316L Stainless Steel Junction Box¨C JSIS8314B30
Core Springs 302 Stainless Steel
With Conduit ¨C IS8314B30
Pilot Seat Insert (Series 8316 & 8344 only) POM
With Quick Disconnect ¨C ISVT8314B30
Rider Rings PTFE
With DIN Connection ¨C ISSC8314B300
Spring Retainer POM
(Connector not included)
Approvals
Electrical
FM and CSA approved for IS - Class I, Div. 1 & 2,
Nominal voltage before the barrier ¨C 24VDC +/- 10%.
Groups A, B, C, and D; Class II, Groups E, F, and G.
IMPORTANT: Maximum allowable "Off" state leakage current or supervisory
Approved for NIFW - Class I, Div. 2
current is 1.6mA.
FM (US & Canada) approved under 3037789 & 3037789C
I
loop
-  Loop current in the circuit, which may be
CSA certified under File 13976, Class 3228-01
    calculated as follows:
(Certificate 1099243)
V

supply
I
ATEX Approved for:
loop
=
)
+R + R
(R
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X

coil    loop    barrier
IECEx Approved for:
Where:
R
coil
-  The resistance of the solenoid coil at
Ex ia IIC T6 Ga under IECExFMG10.0008X
    T
 in degrees C
ambient
Meets applicable CE directives.
R
=  320 ohms x (T
 + 234)
coil
ambient
Refer to Engineering Section for details.
254
R
loop
-  Resistance of the lead wires
Entity Parameters
R
barrier
-  Internal resistance of the barrier
Vmax = 32 VDCCi = 0 nF
V
supply
-  Supply voltage
max = 500 mALi = 0 mH
I
i = 1.5 W
P
This current must always be greater than or equal to 0.030 amps
for proper operation of the solenoid valve.
