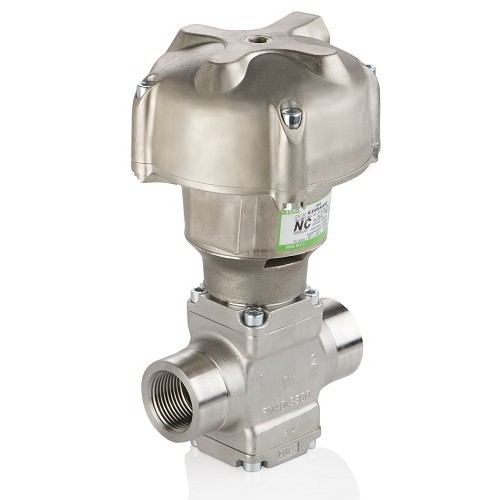

ASCO RedHat Solenoid Valves 2-Way 298 Series

Steam and Aggressive Fluid Piston Valves- 1/2″-2″
Heavy duty piston valves designed to handle steam, superheated water, and corrosive fluids. Available in normally closed and normally open constructions with Stainless Steel bodies and discs.

Features
 Rugged design, built to withstand steam,
superheated water, and corrosive fluids
 Available in normally closed and normally
open constructions
 High-performance, maintenance-free stuffing
box that is resistant to thermal shock
 Anti-water hammer design
 Pressure can be applied to any port as needed
by the process
 Visual position indicator standard
 Ideal for use on tire presses and industrial autoclaves
Construction
Operator: Nickel plated aluminum
Valve Parts in Contact with Fluids
Valve body and plug 304 Stainless Steel
Stuffing box housing 304 Stainless Steel
Stem 316L Stainless Steel
Disc 304 Stainless Steel
Stuffing box packing PTFE Chevron
Disc seal Bronze PTFE
Valve body seal Graphite
Specifications
Fluid: Steam, superheated water, corrosive fluids
Fluid Temperature Range: 14F to 482F (-10C to 250C)
Ambient Temperature Range: -13F to 356F (-25C to 180C)
Maximum Viscosity: 23,500 SSU
Options
For other pipe connections, alternate pilot valves and construction
options, please consult factory
Pilot Valve
8356 Series
In-line mount
 1/8"or 1/4"NPT
Brass or Stainless Steel
see 8356 catalog page for specifications)
(
