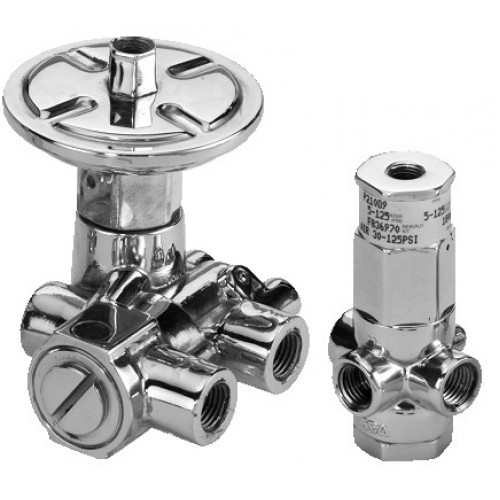

ASCO RedHat Solenoid Valves 2-Way Solenoid Valves F210 / P210 Series
Features
Unique sealing member isolates pilot air pressure
from mainline fluid
Variations in pilot air pressure do not affect
valve operation
Design provides long life handling of lubricated air
Handle fluids up to 200F (92C)
Some constructions handle steam up to 353F (177C)
Mountable in any position
Construction
Valve Parts in Contact with Fluids
Body Brass
Seat NBR or PTFE (for steam service)
Air Operators
Connection Size: 1/8" NPT.
Actuated Displacement Volume: 0.60 cu. in. for 3-30 psi operators;
0.25 cu. in. for 30-125 psi operator
.
Media: Air
(For vacuum or other media, consult your local ASCO sales office for details.
Refer to Optional Features Section for other available manual operators.)
Important
On 3-way and 4-way valves, except for those with zero minimum operating
pressure, a Minimum Operating Pressure Differential must be maintained
between the pressure and exhaust ports. Supply and exhaust piping must be
full area, unrestricted. ASCO flow controls and similar components must be
installed in the cylinder lines only.
Options
Nominal Ambient Temp. Ranges
Elastomers:For F262, P262, P210, P320
32F to 125F (0C to 52C)
FKM (suffix V), Oxygen Service (suffix N)
Refer to Engineering Section for details.
Refer to Engineering Section for fluid and temperature compatibility.
Ordering Information
We must have catalog number, operating pressure,
and fluid to be handled. Use strainers with air
operated valves.
Refer to Engineering Section for details.
Specifications (English units)
Main Line Operating Pressure (psi)
Instrument Air Operator Pneumatic Operator
3-30 psi Range 30-125 psi Range
Maximum
Pipe Orifice Cv Max.
Air- Lt. Oil @ Catalog Const. Catalog Const.
Size Size Flow Fluid
Min. Inert Gas Water 300 SSU Steam Number Ref. Number Ref.
(in) (in) Factor Temp.F
2/2 VALVES
NORMALLY CLOSED (Closed when operator exhausted), Brass Body with NBR Seating
1/4 5/32 .52 0 125 125 125 - 200 F262C202K 1 P262C202 1
1/4 9/32 .88 0 40 40 40 - 200 F262D090K 1 1
P262D090
3/8 5/8 2.8 0 125 125 125 - 180 F210C093K 6 P210C093 6
3/8 3/8 1.5 125 125 125 - 200 F210C073K 3 P210C073 3
1
1/2 7/16 2.2 125 125 125 - 200 F210A015K 4 P210A015 4
1
1/2 5/8 3.6 0 125 125 125 - 180 F210C094K 6 P210C094 6
3/4 3/4 5.5 0 125 125 125 - 180 F210D095K 7 P210D095 7
3/4 3/4 5.5 5 125 125 125 - 180 F210D009K 8 P210D009 8
1 1 13 5 125 125 125 - 180 F210D004K 10 P210D004 10
1 1/4 1 1/8 15 5 125 125 125 - 180 F210D008K 12 P210D008 12
2 1 3/4 43 5 125 125 125 - 180 F210 100K 15 P210 100 15
NORMALLY OPEN (Open when operator exhausted), Brass Body with NBR Seating
1/4 5/32 .50 0 125 125 125 - 200 F262B106K 2 P262B106 2
3/8 5/8 2.8 0 125 125 125 - 180 F210C033K 16 P210C033 16
1/2 5/8 3.5 0 125 125 125 - 180 F210C034K 16 P210C034 16
3/4 3/4 5.5 0 125 125 125 - 180 F210C035K 17 P210C035 17
1 1 13 5 125 125 125 - 180 F210D014K 18 P210D014 18
NORMALLY CLOSED (Closed when operator exhausted), Brass Body with PTFE Seating
1/4 3/8 1.2 1 - - - 125 353 F222A070K 4 P222A070 4
3/8 3/8 2.5 1 - - - 125 353 F222A074K 4 P222A074 4
1/2 3/8 2.5 1 - - - 125 353 F222A076K 4 P222A076 4
3/2 VALVES
NORMALLY CLOSED (Closed when operator exhausted), Brass Body with NBR Seats
1/4 9/32 10 125 125 125 - 200 F321A001K 5 P321A001 5
3/8 9/32 10 125 125 125 - 200 F321A002K 5 P321A002 5
3/8 5/8 3 10 125 125 - - 200 F316D014K 2 P316D014 2
1/2 5/8 4 10 125 125 - - 200 F316D024K 2 P316D024 2
3/4 11/16 5.5 10 125 125 - - 200 F316E044K 3 P316E044 3
1 1 13 10 125 125 - - 200 F316E034K 4 P316E034 4
UNIVERSAL (Pressure at any port), Brass Body with NBR Seats
1/4 1/8 .31 0 125 125 125 - 200 F320A009K 1 P320A009 1
4/2 VALVES
Main Line Operating Pressure (psi)
Instrument Air Operator Pneumatic Operator
Cv Flow Factor 3-30 psi Range 30-125 psi RangeMaximum
Pipe Orifice Max.
Size Size FluidPress. to Exh. to Air-Inert Lt. Oil @ Catalog Const. Catalog Const.
Min. Water
Cyl. Cyl. Gas 300 SSU Number Ref. Number Ref.
(in) (in) Temp.?F
2-Position Brass Body with Soft Seating
1/4 1/4 .80 1 125 125 125 200 F444B000K 1 P444B000 1
10
3/8 3/8 1.4 2.2 125 125 125 200 F444C025K 2 P444C025 2
10 3-40 psi (.2 - 2.8 bar) and 50-125 psi (3.4 - 8.6 bar) range for steam valves only. Refers to operator minimum pressure: Catalog Number P262D090 requires 50 psi (3.4 bar) minimum pressure. Cv pressure to cylinder = 0.8 (.7 Kv); Cv cylinder to exhaust = 1.2 (1.0 Kv). Const. Ref. 1 has soft seating; Const. Ref. 2 and 3 have soft to metal seating.25 psi (1.7 bar) required on light oil service.5 psi (0.35 bar) required for air service.
