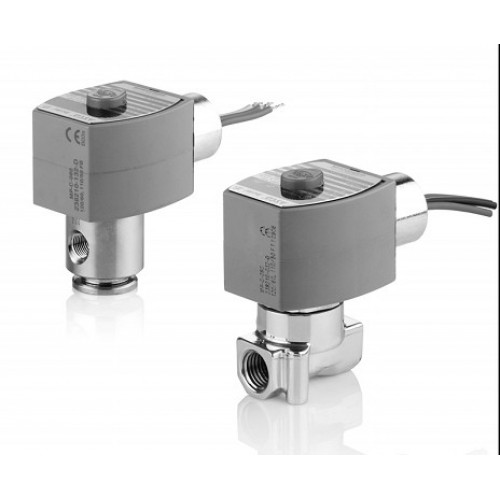

ASCO RedHat Solenoid Valves 2-Way 8210LT Series
Cryogenic – 1″–1 1/2″
Solenoid pilot AC or DC operated diaphragm valves available with brass bodies for liquid oxygen, liquid argon, and liquid nitrogen applications.
Specifications (English units)
Watt Rating/
Operating Pressure Differential (psi)
Class of Coil
Cv
Orifice
Pipe
InsulationMax.
Flow Const.
Size
Size
AC
DC @ 104FDC @ 131FACDC
Factor Catalog Number Ref.Min.
(in)
(in)
CRYOGENIC SERVICE - NORMALLY CLOSED (Closed when de-energized)
1/8 1/8 0.35 0 155 75 68 8263H240LT 1 10.1/F 11.6/H
1/8 1/8 0.35 0 250 130 120 8262H105LT 1 17.1/F 22.6/H
1/4 1/8 0.35 0 155 75 68 8262H232LT 1 10.1/F 11.6/H
1/4 1/8 0.35 0 250 130 120 8262H110LT 1 17.1/F 22.6/H
1/4 7/32 0.73 0 48 30 22 8262H208LT 1 10.1/F 11.6/H
1/4 7/32 0.73 0 100 42 40 8262H114LT 1 17.1/F 22.6/H
1/4 9/32 0.88 0 40 18 14 8262H210LT 1 10.1/F 11.6/H
1/4 9/32 0.88 0 58 27 18 8262H212LT 1 17.1/F 22.6/H
3/8 1/8 0.35 0 155 75 68 8263H232LT 2 10.1/F 11.6/H
3/8 1/8 0.35 0 250 130 120 8263H115LT 2 17.1/F 22.6/H
3/8 7/32 0.73 0 48 30 22 8263H124LT 2 10.1/F 11.6/H
3/8 7/32 0.73 0 90 42 40 8263H206LT 2 17.1/F 22.6/H
3/8 9/32 0.88 0 40 18 14 8263H125LT 2 10.1/F 11.6/H
3/8 9/32 0.88 0 58 27 18 8263H210LT 2 17.1/F 22.6/H
1/2 5/8 3.8 0 90 50 - 8222G002LT 3 17.1/H 40.6/H
3/4 3/4 5.8 0 90 50 - 8222G003LT 3 17.1/H 40.6/H
1 1 13.5 5 200 100 - 8210G078LT 4 17.1/F 40.6/H
1 1/4 1 1/8 15 5 200 100 - 8210G080LT 5 17.1/F 40.6/H
1 1/2 1 1/4 22.5 5 200 100 - 8210G082LT 6 17.1/F 40.6/H
LIQUID CO SERVICE - NORMALLY CLOSED (Closed when de-energized)
2
1/8 3/64 .06 0 1000 1000 - 7 13.8/F 18.6/F
8264G009
1/8 3/32 .20 0 300 300 - 7 13.8/F 18.6/F
8264G010 Must use tubing with an I.D. no larger than the outlet port orifice to locate the refrigeration point downstream and to prevent freezing of the CO inside the valve.
2For 8262 & 8263 Series, AC pressure ratings are at 131?F ambinet; for all other series, AC pressure ratings are at 125?F
Specifications (Metric units)
Watt Rating/
Operating Pressure Differential (bar)
Class of Coil
Kv Flow
Orifice
Pipe
InsulationMax.
Factor
Size
Size
Const.
3
AC
(m
(mm)
DC @ 40?CDC @ 55?CACDC
(in)
/hr) Catalog Number Ref.Min.
CRYOGENIC SERVICE - NORMALLY CLOSED (Closed when de-energized)
1/8 3.2 0.30 0 11 5 5 8263H240LT 1 10.1/F 11.6/H
1/8 3.2 0.30 0 17 9 8 8262H105LT 1 17.1/F 22.6/H
1/4 3.2 0.30 0 11 5 5 8262H232LT 1 10.1/F 11.6/H
1/4 3.2 0.30 0 17 9 8 8262H110LT 1 17.1/F 22.6/H
1/4 5.6 0.63 0 3 2 2 8262H208LT 1 10.1/F 11.6/H
1/4 5.6 0.63 0 7 3 3 8262H114LT 1 17.1/F 22.6/H
1/4 7.0 0.76 0 3 1 1 8262H210LT 1 10.1/F 11.6/H
1/4 7.0 0.76 0 4 2 1 8262H212LT 1 17.1/F 22.6/H
3/8 3.2 0.30 0 11 5 5 8263H232LT 2 10.1/F 11.6/H
3/8 3.2 0.30 0 17 9 8 8263H115LT 2 17.1/F 22.6/H
3/8 5.6 0.63 0 3 2 2 8263H124LT 2 10.1/F 11.6/H
3/8 5.6 0.63 0 6 3 3 8263H206LT 2 17.1/F 22.6/H
3/8 7.0 0.76 0 3 1 1 8263H125LT 2 10.1/F 11.6/H
3/8 7.0 0.76 0 4 2 1 8263H210LT 2 17.1/F 22.6/H
1/2 16 3.2 0 6 3 - 8222G002LT 3 17.1/H 40.6/H
3/4 19 5 0 6 3 - 8222G003LT 3 17.1/H 40.6/H
1 25 11.6 5 14 7 - 8210G078LT 4 17.1/F 40.6/H
1 1/4 29 13 5 14 7 - 8210G080LT 5 17.1/F 40.6/H
1 1/2 32 19 5 14 7 - 8210G082LT 6 17.1/F 40.6/H
LIQUID CO SERVICE - NORMALLY CLOSED (Closed when de-energized)
2
1/8 1 .05 0 69 69 - 7 13.8/F 18.6/F
8264G009
1/8 2 .17 0 21 21 - 7 13.8/F 18.6/F
8264G010 Must use tubing with an I.D. no larger than the outlet port orifice to locate the refrigeration point downstream and to prevent freezing of the CO inside the valve.
2For 8262 & 8263 Series, AC pressure ratings are at 55?C ambinet; for all other series, AC pressure ratings are at 52?C
