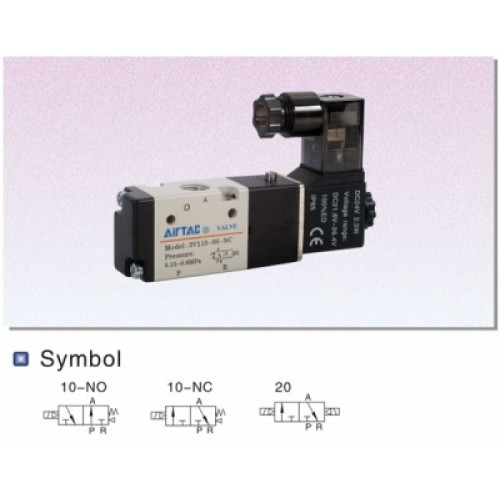

Airtac 3V100 series 3V120-06 solenoid valve
1. Pilot-oriented mode:internally piloted.
2. Structure in silding column mode:good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life.
5. No need to add oil for lubrication .
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional.
Fluid Air(to be filtered by 40um filter element)
Acting Internally piloted
Port size 1/8"
Valve type 3 port 2 position
Lubrication Not required
Operating pressuer 0.15-0.8MPa(21-114Psi)
Proof pressure 1.5MPa(215Psi)
Temperature ℃ -20-70
Material of body Aluminum alloy
2. Structure in silding column mode:good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life.
5. No need to add oil for lubrication .
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional.
Fluid Air(to be filtered by 40um filter element)
Acting Internally piloted
Port size 1/8"
Valve type 3 port 2 position
Lubrication Not required
Operating pressuer 0.15-0.8MPa(21-114Psi)
Proof pressure 1.5MPa(215Psi)
Temperature ℃ -20-70
Material of body Aluminum alloy
