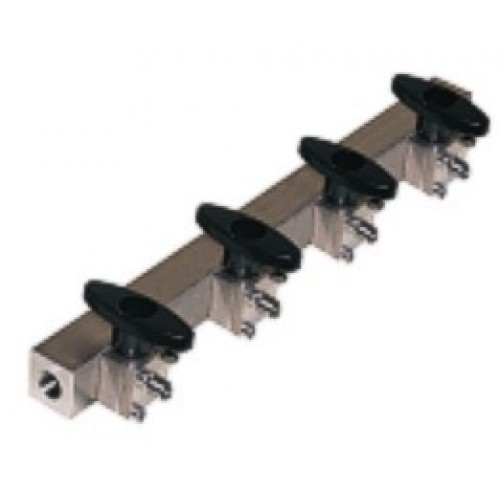

Alco Distribution Manifolds valves ADM-S Series - High Intergity Bolted-Style

The Alco ADM-S range of compact, High Integrity distribution manifolds come in our standard configurations or to client specifications. Being a bolted construction drop-centre facility is easily achieved for inspection, maintenance or repair.

Typical example: ADM6-S4NS (6 way ADM with 1/2" NPT female inlet / drain at both ends and 6 x 1/2" NPT female valved outlets / take-offs.

ADM-S range can be supplied with up to 40 take-off ball valves, or mixed ball and screw-in needle valves.Inlet and drain connections can be made to specification, this includes threaded NPT, BSPP or BSPT as standard or flanges i.e. 150 lbs. Rf. or even socket / butt weld.

Mounting legs or holes can be supplied to make installation easier. Take off sizes can vary from 1/4” to 1” in size. Working pressures range from 2,000 psi up to 6,000 psi.
