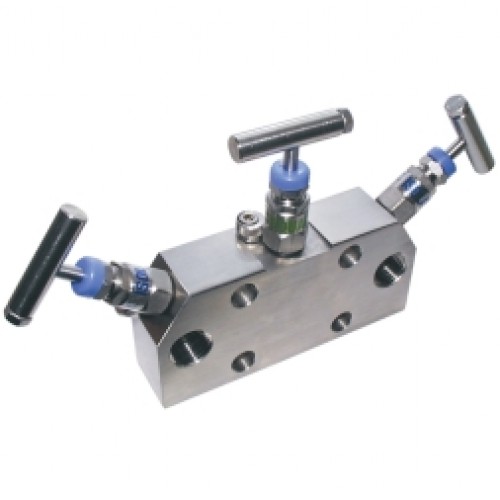

Alco Manifold and Gauge Valves 3 Valve Direct Mounted Instrument Manifold - Angled Heads

3VBDD Series Instrument Manifold
* 54MM (2-1/8") X 1/2" NPT Female
* Angled heads / valves for D.P. clearance and ease of use

Direct mounted three-valve manifold, instrument mount to pipe connection. Offering two isolation valves, and one equalising valve. Supplied with bolt pack and spare seals.

This slim, compact 3 valve manifold offers all the features of Alco’s high integrity needle valve head design incorporated in one common instrument manifold block. All additional porting supplied plugged as standard.

Can be supplied to DIN 19213 mounting specification in the 100 bar (1,500 psi) or 420 bar (6,000 psi). Variuos options are available including locking facility, metering tip option, softe delrin tip, Monel K500 tip etc.
