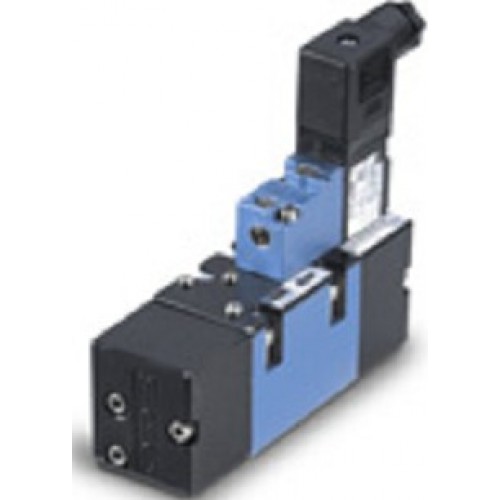

MAC ISO solenoid valves ISO1

SERIES FEATURES
Plug-in (5599/2) and non plug-in (5599/1) models.
2-position, single or double operator. (Solenoid or Remote Air)
3-position, double solenoid, open center, closed center, and pressure center.
Extended or recessed manual operators.
Single pressure and dual pressure.
Individual base or add-a-unit manifold base.
Plug-in, sandwich, single and dual pressure regulators for both individual and manifold valves.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Internal pilot: 20 to 120 PSI
External pilot : vacuum to 120 PSI
Pilot pressure :Single/double operator : 20 to 120 PSI, 3 positions : 30 to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :3/8": (1.8 C ) (R)C 1/4": (1.6  )
Coil :Class A continuous duty, #22 AWG x 18 leads
Voltage range :-15% to +10% of nominal voltage
Protection :Consult factory
Power :~ Inrush 7.6 VA       Holding: 4.8 VA= 1 to 12.7 W
Response times :
Energize :11.3 ms(with 5,4 W coil)
De-energize : 7.8 ms
