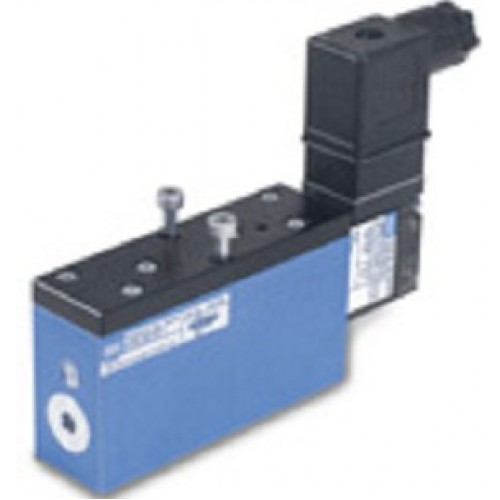

MAC ISO solenoid valves ISO01 size 26mm

SERIES FEATURES
High force MACSOLENOID .
Integral 4-way pilot design.
2-position, single or double operator.
3-position, double solenoid, open center, closed center and pressure center.
Internal or external pilot.
Single or dual pressure.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Internal Pilot - 2 pos.: 20 to 120 PSI - 3 pos.: 35 to 120 PSI
External Pilot: Vacuum to 120 PSI
Pilot pressure :2 pos.: 20 to 120 PSI - 3 pos.: 35 to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :2 pos.: Cv 1.0 (R)C 3 pos.: Cv 0.
Coil :Class A wires continuous duty, #22 AWG x 18
Voltage range :-15% to +10% of nominal voltage
Power :1,0 to 5,4 W
