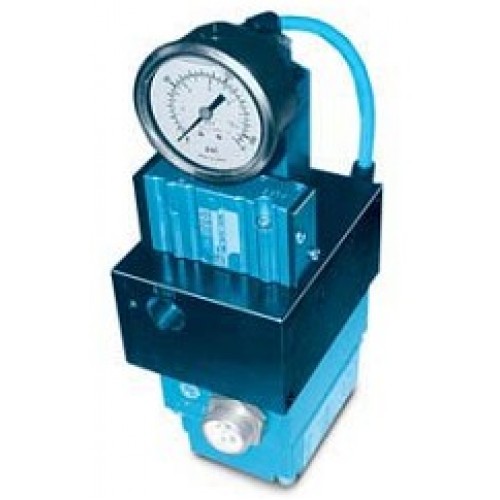

MAC proportional pressure control PQE and pressure control system Series92

OPERATIONALBENEFITS
1. Accurate pressure control.
2. Fast response.
3. High flow.
4. Quick exhaust function.
5. Unaffected by change in line pressure.
6. Long life.
7. Designed to meet Nema 4 specifications.
8. Analog control.
9. Analog or TTL feedback.
10. Closed loop system.

PPCTYPE
Analog, single transducer external sense, bottom O-ring mount
ELECTRICALDATA
Reference PPC5Cspecifications
PHYSICALDATA
Connector :Reference PPC5Cspecifications
Enclosure :Aluminum, sealed
Mounting :Any plane
Ambient temperature range :0 to 50C (32F to 120

PNEUMATICDATA
Inlet pressure :120 PSI max
Fluids :Air or inert gases
Lubrication :Not required. However, if used, a medium aniline point oil is recommended
Filtration :40 micron
*Output pressure :20 to 100 PSI
Overall accuracy :2.5% full scale
All ports :1/4, 3/8, NPTF, BSPPL, BSPTR
Flows :Output flow :1/4± ports: Cv 0.943/8± ports: Cv 1
Exhaust flow :1/4± ports: Cv 1.33/8± ports: Cv 1
**Output volume requirements :Port sizeOutput volume atMinimum length end of output pipeof output pipe 1/4±100 Cu. in. and larger12 50 to 99 Cu. in.50 3/8±100 Cu. in. and larger 24 50 to 99 Cu. in.50
* The quick exhaust portion of the PQE was not designed to be used at pressures below 20 PSIG. The PQE will exhaust
below 20 PSIG but at a very reduced rate. Also, the minimum pressure change (from higher to lower) that will allow
the quick exhaust to function is 3 PSIG.
** This is the minimum output volume and output piping required to keep the unit stable. Configurations below these
minimums should be tested on a case by case basis.
