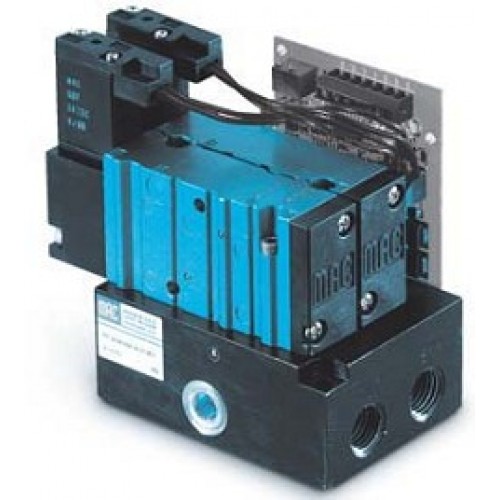

MAC proportional pressure control PQE and pressure control system SeriesPPC400A

OPERATIONALBENEFITS
1. Reliable operation, using two MAC 400 Series
with balanced pilot.
2. Fast response.
3. Long life.
4. High flow.
5. Low power consumption.
6. Not affected by vibrations.
7. Accuracy : 2.5 % full scale
8. Analog command signal and output.

GENERALDATA
Ambient temperature :32 to 120F/0 to 50
LED indicators :Red : power on - Green : pressure achieved
Vibration :Not affected
Port size :G1/4±, 1/4± NPTF - Option : bottom por
Connector :7 pin terminal block
Mounting :Any plane

ELECTRICALDATA
Supply voltage :20.4 to 26.4 VDC
Supply current :50 to 350mA
Command signal :0 to 10V or 4 to 20mA
Command type :Single-ended or differential
Input impedance :4.99 k 1.0% (voltage316  0.1% (current
Analog Monitor Signal (AMS) :0 to 10 Volt
Logic Monitor Signal (LMS) :2 types of signals (see How to order) (sinking)
EMI/RFI protection :Common mode and high frequency noise reduction for electrical inputs

PNEUMATICDATA
Inlet pressure* :120 PSI max (for 10-100 PSI output pres.)，8 BAR max (for 0.66-6.6 BAR output pres.)
Fluids :Compressed air or inert gases
Lubrication :Not required. However, if used, a medium aniline point oil is recommended
Output pressure :0 to 10, 30, 45, 60, 100 PSI，0 to 0.66, 2, 3, 4, 6.6 BAR
Overall accuracy :2.5% full scal
Flow :Cv 1.3/1300 Nl/min3
Minimum closed end volume :50.0 cubic inch - 820 cm
* 20 PSI maximum inlet for 10 PSI output pressure - 1.3 BAR maximum inlet for 0.66 BAR output pressure.
Minimum inlet pressure for 400 series internal pilot is 20 PSI/1.3 BAR.
