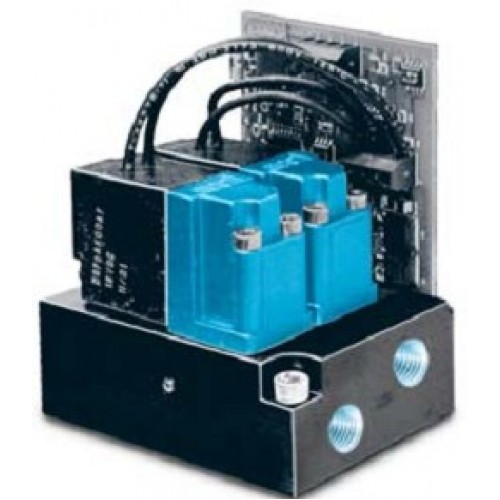

MAC proportional pressure control PQE and pressure control system LCP35A

OPERATIONALBENEFITS
1. Reliable operation, using two MAC 35 Series
2. Repeatability.
3. Fast response.
4. Long life.
5. High flow.
6. Low power consumption.
7. Not affected by vibrations.
8. Accurate pressure control.
9. Analog command signal and output.

GENERALDATA
Ambient temperature :32 to 120°,F/0 to 50°
Vibration :Not affected
Port size :1/8°±
Connector :4 pin terminal block
Mounting :Any plane

ELECTRICALDATA
Supply voltage :18 to 28 VDC
Supply current :50 to 350mA
Command signal :4 to 20mA, 0-10v
Command type :Differential
Input impedance :316  °0.1% (current4.99  °1.0%  (voltage
EMI/RFI protection :Common mode and high frequency noise reduction

PNEUMATICDATA
Inlet pressure :120 PSI max (for 10-100 PSI output pressure)
8 BAR max (for 0.66-6.6 BAR output pressure)
Fluids :Air or inert gases
Lubrication :Not required, if used select a medium aniline point oil
Output pressure :
0 to 10, 30, 40, 45, 60 and 100
0 to 0.66, 2, 2.6, 3, 4 and 6.6
Overall accuracy :
1.5% full scal
2.5% full scal
Flow :Cv 0.10/100 Nl/min
Minimum closed end volume :1.0 cubic inch
