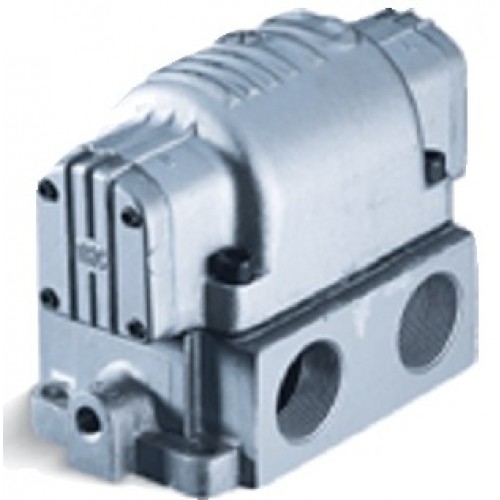

MAC 4 way solenoid valves large 2700 Series

The MAC 2700 Series is a versatile 4-way remote air operated valve with large flow capabilities.  Versatility in piping means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications.  Our one piece bonded seal spool means longer life and easy maintenance.

OPERATIONAL BENEFITS
1.  Balanced spool, immune to variations of
pressure.
2.  Short stroke with high flow.
3.  The piston (booster) provides maximum
shifting forces.
4.  Powerful return thanks to the combination of
mechanical and air springs.
5.  Bonded spool with minimum friction, shifting
in a glass-like finished bore.
6.  Wiping effect eliminates sticking.
7.  Low leakage rate.

technical data
Fluid : Compressed air, vacuum, inert gases
Pressure range : Vacuum to 150 PSI
Dongle operator and 3 positions : 25 to 150 PSI !Y main valve pressur uble operator : 10 to 150 PSI
Air signal pressure : Si Not required, if used  select a medium aniline point lubricant (between 180!aF to 210!a
Lubrication :40 |
Filtration :0!aF to 120!aF (-18!aC to 50
Temperature range :Flow (at 6 bar, ?P=1bar) :3/4" : (11.5 C ), 1" : (13.4 C ), 1 1/4" : (15.4 C ), 1 1/2" : (15.9 C )
Leak rate : /mincm020
