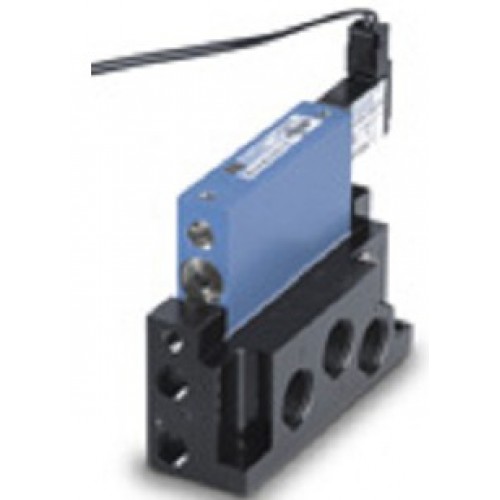

MAC 4 way solenoid valves small 48 Series

The MAC 48 Series is a high flow 16mm 4-way spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

SERIES FEATURES
High force MACSOLENOID .
Integral 4-way pilot design.
Single or dual pressure.
Internal or external pilot.
Single or double solenoid.
2 or 3 position.
Rectified AC voltage.
Latching solenoid technology.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Internal pilot:  2 pos.: 20 to 120 PSI           -   3 pos.: 35 to 120 PSI
External pilot:  vacuum to 120 PSI
Pilot pressure :2 position : 20 to 120 PSI   -   3 position : 35 to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :1/8" side ports: (1.0 C ) (R)C 1/8" bottom ports : (1.1  )
Coil :Class A wire (#22 AWG x 18), continuous duty
Voltage range :-15% to +10% of nominal voltage
Power :1.0 to 4.0 W
Response times :Energize : 6 ms(with 4 W coil)De-energize : 6 ms
