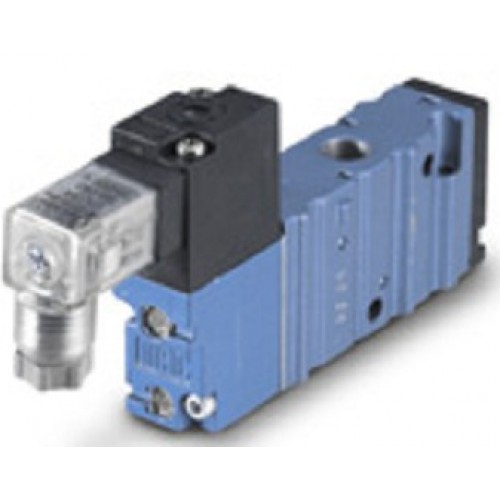

MAC 3 way solenoid valves large 52 Series

The MAC 52 Series is a 3-way balanced spool valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in valve manufacturing.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

SERIES FEATURES
Patented MACSOLENOID for fastest possible response times and virtually burn-out proof AC solenoid operation.
Optional low watt DC solenoids.
Various manual operators.
Optional memory spring.
Normally closed or normally open valve function.
May be plugged for 2-way operation.
Internal or external pilot.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Internal Pilot : 20 to 120 PSI
External Pilot : Vacuum to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :1/8" : (1.2 C ) (R)C 1/4" : (1.5  )v v
Coil :Class A continuous duty, #22 AWG x 18 lead wires
Voltage range :-15% to +10% of nominal voltage
Protection :Consult factory
Power :~Inrush: 10.9 VA          Holding: 7.7 VA= 1.8 to 12.7 W
Response times :
24V=/5.4WEnergize: 7.3 msDe-energize: 5.3 ms
120/60Energize: 8-12 msDe-energize: 7-11 ms
