MAC 3 way solenoid valves small 77 Series

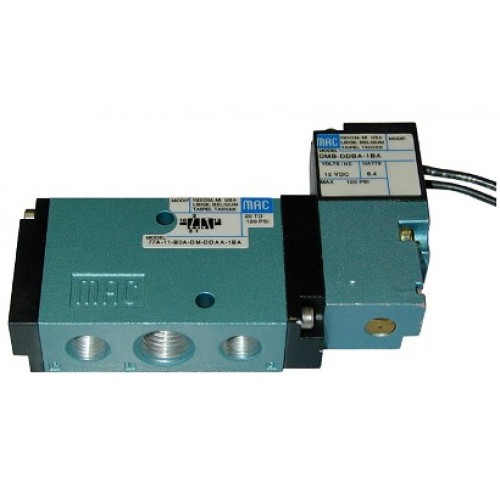

The MAC 77 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.

OPERATIONAL BENEFITS
1. The 4-way pilot develops maximum shifting
    force both ways.
2. Patented conical seats for long life.
3. Short stroke with high flow.
4. Bonded poppet with minimal friction.
5. Wiping effect eliminates sticking.
6. Extremely repeatable response.

TECHNICAL DATA
Fluid : Compressed air, vacuum, inert gases
Pressure range :  Vacuum to 120 PSI (External pilot) 30 to 120 PSI (Internal pilot)
Pilot pressure : 30 to 120 PSI
Lubrication : Not required, if used select a medium aniline point lubricant (between 180!aF and 210!a
Filtration : 40 |
Temperature range : 0!aF to 120!1.0 Cv
Coil :Class A continuous duty, #22 AWG x 18 lead wires
Voltage range: -15% to +10% of nominal voltage
Protection :Consult factory
Power:DC 12/24 Volt 1.0w to 5.4w (higher wattages available)   AC 24, 120, 220, 240 VAC
