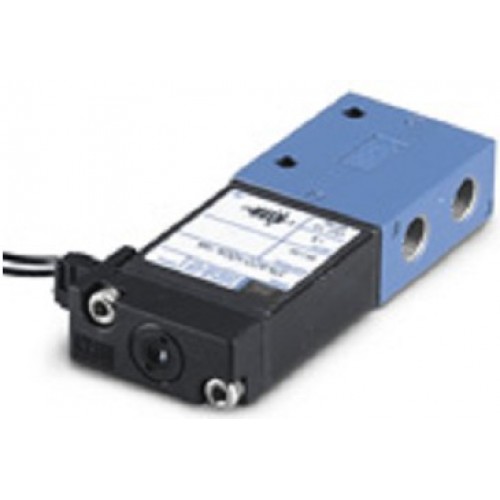

MAC 3 way solenoid valves small 37 Series

The MAC 37 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life.

SERIES FEATURES
Balanced poppet equals consistent high shifting forces.
Valve shifting forces are consistent and independent of pressure fluctuations.
High solenoid and return spring forces ensure high speed and precise repeatability.
Built-in wear compensation - valve stroke is shorter than solenoid stroke.
Constant high flow maintained throughout the pressure range.
Exhaust contaminants are isolated from the solenoid.
Full flow exhaust.
Universal porting - 6 functions in one valve.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Vacuum to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :5.2 W : (0.5 C ) (R)C 2.4 W : (0.35  )v v
Coil :Class A wire (#22 AWG x 18), continuous duty
Voltage range :-15% to +10% of nominal voltage
Power :5.2 W (R)C 2.4 W
Response times :Energize : 16.9 ms(with 5.2 W coil)
De-energize : 6.7 ms
