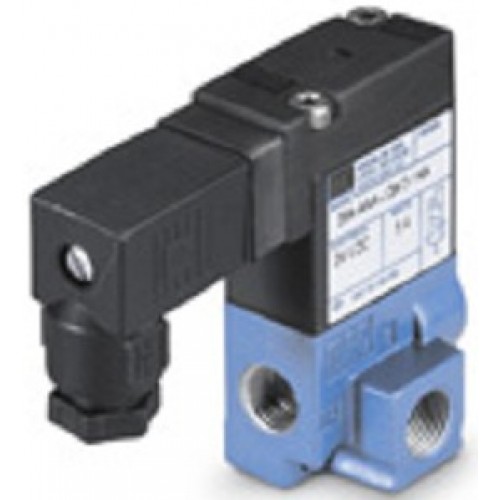

MAC 3 way solenoid valves small 36 Series

The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent reponse times, high flow in a small package and long life.

SERIESFEATURES
Patented high force MACSOLENOID for fastest possible response times.
Bonded balanced poppet for high flow, precise repeatability, and consistent operation.
Balanced poppet permits versatility in function °(TM) may be used as 3-way or 2-way normally open or
normally closed and may be used for vacuum, divertor, or selector applications.
Extremely high cycle rate capability.
Use on lube or non-lube service.
Manual overrides as standard.
Various solenoid enclosures and plug-in connectors.
Optional surge suppression available.
Low wattage DC solenoids °(TM) down to 1.8 watts
Rectified AC voltage.

TECHNICALDATA
Fluid :Compressed air, vacuum, inert gases
Pressure range :Vacuum to 120 PSI
Lubrication :Not required, if used  select a medium aniline point lubricant (between 180°,F and 210°,
Filtration :40 P
Temperature range :0°,F to 120°,F (-18°,C to +50
Flow :1.8 Watt: (0.15 C ), 2.4 Watt: (0.15 C ), 5.4 Watt: (0.30 C )v v v
Coil :Class A wire (#22 AWG x 12), continuous duty
Voltage range :-15% to +10% of nominal voltage
Protection :Consult factory
Power :5.4 W (R)C 2.4 W (R)C 1.8
