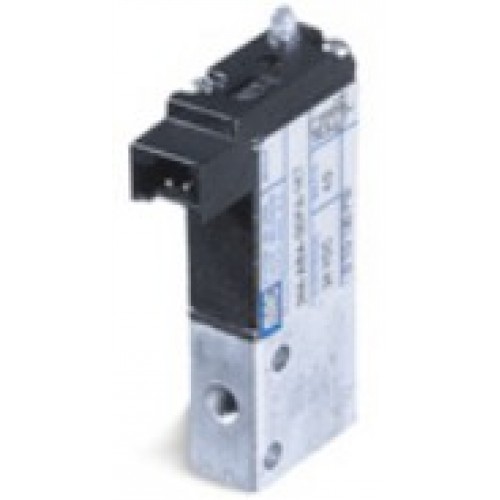

MAC 3 way solenoid valves small 33 Series

The Mac 33 series is a direct solenoid operated 3-way - 8mm - poppet valve.  A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations.  It features an oval armature in the solenoid, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life.

TECHNICALDATA Fluid : Compressed air, vacuum, inert gases
Pressure range : Vacuum to 120 PSI
Lubrication : Not required, if used select a medium aniline point lubricant (between 180°,F and 210°,
Filtration : 40P
Temperature range : 40P 0°,F to 120°,F (-18°,C to +50
Flow :  4W: (Cv .082) - 3W: (Cv .062) - 2.5W: (Cv .062) - 1.8W: (Cv .055) - 1.0W: (Cv .030) - 0.5W: (Cv .020)
Coil : Class A wire (#26 AWG x18), continuous duty
Voltage range : -15% to +10% of nominal voltage
Power :4.0W - 3.0W - 2.5W - 1.8W - 1.0W - 0.5W
