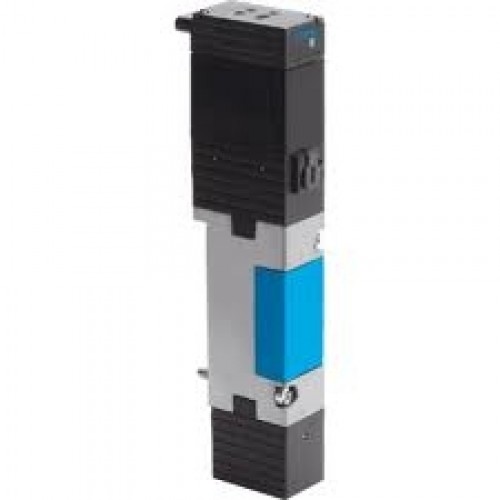

Festo Solenoid valve MTH-5/2-7,0-L-S-VI

Product Type Festo Valves for type 03
Short type code MTH
Valve Function 5/2 monostable
Mounting With through hole
Manual override with accessories, detenting
Type of reset Air spring
Ambient temp -5 - 50 °C
Assembly position Any
b value 0.23
C value 6.1 l/sbar
Design structure Piston slide
Exhaust-air function throttleable
Flow direction reversible
Materials information for seals NBR
Medium temperature -5 - 50 °C
Nominal size 7 mm
Operating medium Filtered, lubricated compressed air, 50 µm filtration
Operating medium Filtered, unlubricated compressed air, 50 µm filtration
Operating Pressure -0.9 - 10 bar
Pilot pressure 4 - 6 bar
Pneumatic connection, port 1 Sub-base
Pneumatic connection, port 2 Sub-base
Pneumatic connection, port 3 Sub-base
Pneumatic connection, port 4 Sub-base
Pneumatic connection, port 5 Sub-base
Pneumatic working line Anschlussplatte
Sealing principle Soft
Standard nominal flow rate 1300 l/min
Switching time off 30 ms
Switching time on 25 ms
Type of actuation electrical
Type of piloting Piloted
