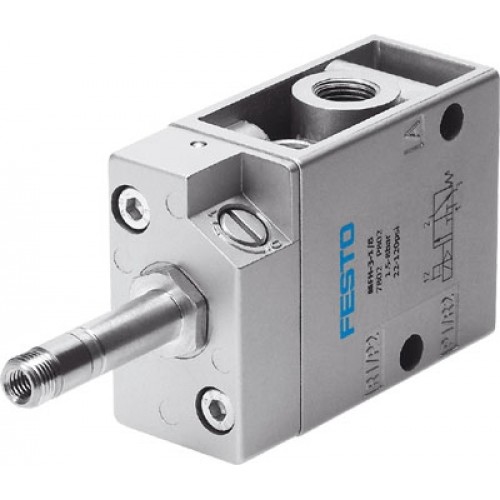

Festo Solenoid valve MOFH-3-1/4

Product Type Festo Tiger Classic valves
Short type code MOFH
Valve Function 3/2 open, monostable
Electrical Connect Via F coil, must be ordered separately
Mounting on manifold rail
Mounting Optional
Mounting With through hole
Manual override Detenting
Type of reset Mechanical spring
Ambient temp -5 - 40 °C
Assembly position Any
Design structure Poppet seat
Exhaust-air function throttleable
Flow direction non reversible
Grid dimension 32 mm
Materials information for seals NBR
Materials information, housing Aluminium die cast
Medium temperature -10 - 60 °C
Nominal size 7 mm
Operating medium filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated
Operating Pressure 1.5 - 8 bar
Pilot exhaust port 82 M5
Pneumatic connection, 11 G1/4
Pneumatic connection, 33 G1/4
Pneumatic connection, port 2 G1/4
Pneumatic working line G1/4
Product weight 320 g
Protection class IP65
Sealing principle Soft
Standard nominal flow rate 800 l/min
Switching time off 45 ms
Switching time on 15 ms
Type of actuation electrical
Type of piloting Piloted
