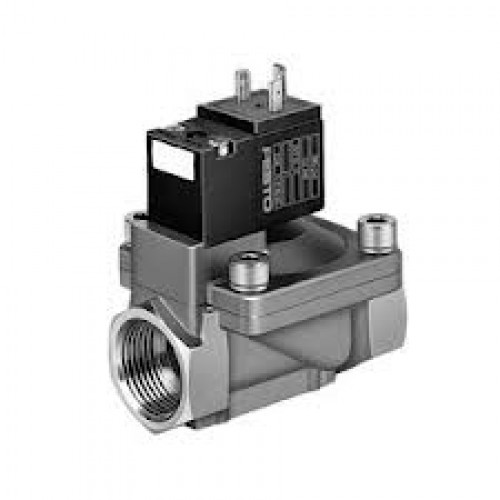

Festo Solenoid valve MN1H-2-1/2-MS

Property Value
Short type code MN1H
Design structure Diaphragm valve
Ambient temp -10 - 60 °C
Mounting Line installation
Assembly position Any
Operating Pressure 0.5 - 10 bar
Medium temperature -10 - 60 °C
Product weight 400 g
Operating medium Filtered compressed air, grade of filtration 200 µm, lubricated or unlubricated
Symbol 00991399
Valve Function 2/2
Valve Function monostable
Flow direction non reversible
Sealing principle soft
Type of piloting Piloted
Type of reset Air spring
Nominal size 13 mm
Electrical Connect Plug
Electrical Connect Cubic design
Electrical Connect Per DIN EN 175301-803
Electrical Connect Design A
Manual override with accessories, detenting
Manual override Pushing
Switching time on 30 ms
Switching time off 100 ms
Protection class IP65
Protection class with plug socket
Characteristic coil data 110 V AC: 50 Hz, switching power: 5 VA, holding capacity: 3.7 VA
Characteristic coil data 110 V AC: 60 Hz, switching power: 5 VA, holding capacity: 3.7 VA
Characteristic coil data 230 V AC: 50 Hz, switching power: 5 VA, holding capacity: 3.7 VA
Characteristic coil data 230 V AC: 60 Hz, switching power: 5 VA, holding capacity: 3.7 VA
Characteristic coil data 24V DC: 2,5W
Materials information, housing Brass
Screw material data High alloy steel, non-corrosive
Product Type Festo Electrical way valves MN1H
Exhaust-air function not throttleable
Material number, screw 1.4301
Process valve connection G1/2
Standard nominal flow rate 3100 l/min
Type of actuation electrical
