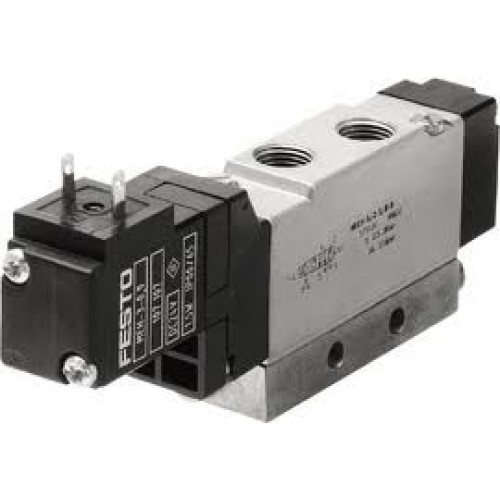

Festo Solenoid valve MEBH-5/2-1/8-L-B

Product Type Festo Midi pneumatic valves
Short type code MEBH
Valve Function 5/2 monostable
Valve Function 5/2-way valve, single solenoid
Electrical Connect with EB solenoid coil
Nominal operating voltage 24 VDC
Mounting In-line valve
Mounting With through hole
Pneumatic connection Female thread G1/8
Pilot air supply Internal
Type of reset Pneumatic spring
Ambient temp -5 - 50 °C
Characteristic coil data 24 V DC: 2.5 W
Design structure Piston slide
Materials information for seals NBR
Materials information, housing Aluminium die cast
Medium temperature -5 - 50 °C
Nominal size 5 mm
Operating medium Dried compressed air, lubricated or unlubricated
Operating Pressure 2.5 - 8 bar
Operating voltage 24 V DC
Pilot pressure 2.5 - 8 bar
Pneumatic connection, port 1 G1/8
Pneumatic connection, port 2 G1/8
Pneumatic connection, port 3 G1/8
Pneumatic connection, port 4 G1/8
Pneumatic connection, port 5 G1/8
Pneumatic working line G1/8
Product weight 105 g
Standard nominal flow rate 600 l/min
Switching time off 18 ms
Switching time on 15 ms
