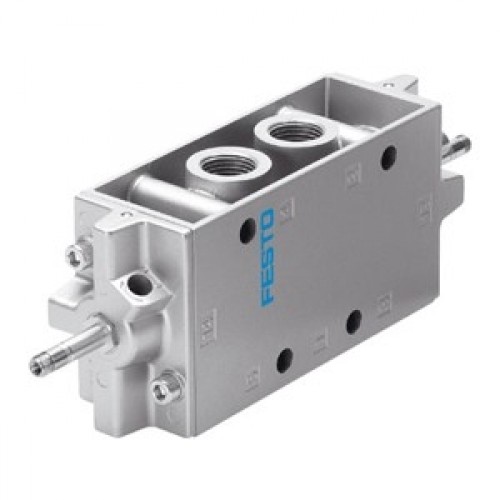

Festo Solenoid valve JMFH-5-1/2

Product Type Festo Tiger Classic valves
Short type code JMFH
Valve Function 5/2 bistable
Electrical Connect Via F coil, must be ordered separately
Mounting on manifold rail
Mounting Optional
Mounting With through hole
Manual override Detenting
Ambient temp -5 - 40 °C
Assembly position Any
b value 0.3
C value 19.5 l/sbar
Design structure Poppet seat
Exhaust-air function throttleable
Flow direction non reversible
Materials information for seals NBR
Materials information for seals TPE-U(PU)
Materials information, housing Aluminium
Materials information, housing Aluminium die cast
Materials information, housing POM
Materials information, housing Steel
Medium temperature -10 - 60 °C
Nominal size 14 mm
Operating medium filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated
Operating Pressure 2 - 8 bar
Pilot exhaust port 82 M5
Pilot exhaust port 84 M5
Pneumatic connection, port 1 G1/2
Pneumatic connection, port 2 G1/2
Pneumatic connection, port 3 G1/2
Pneumatic connection, port 4 G1/2
Pneumatic connection, port 5 G1/2
Pneumatic working line G1/2
Product weight 1210 g
Protection class IP65
Sealing principle Soft
Standard nominal flow rate 4500 l/min
Switching time reversal 16 ms
Type of actuation electrical
Type of piloting Piloted
